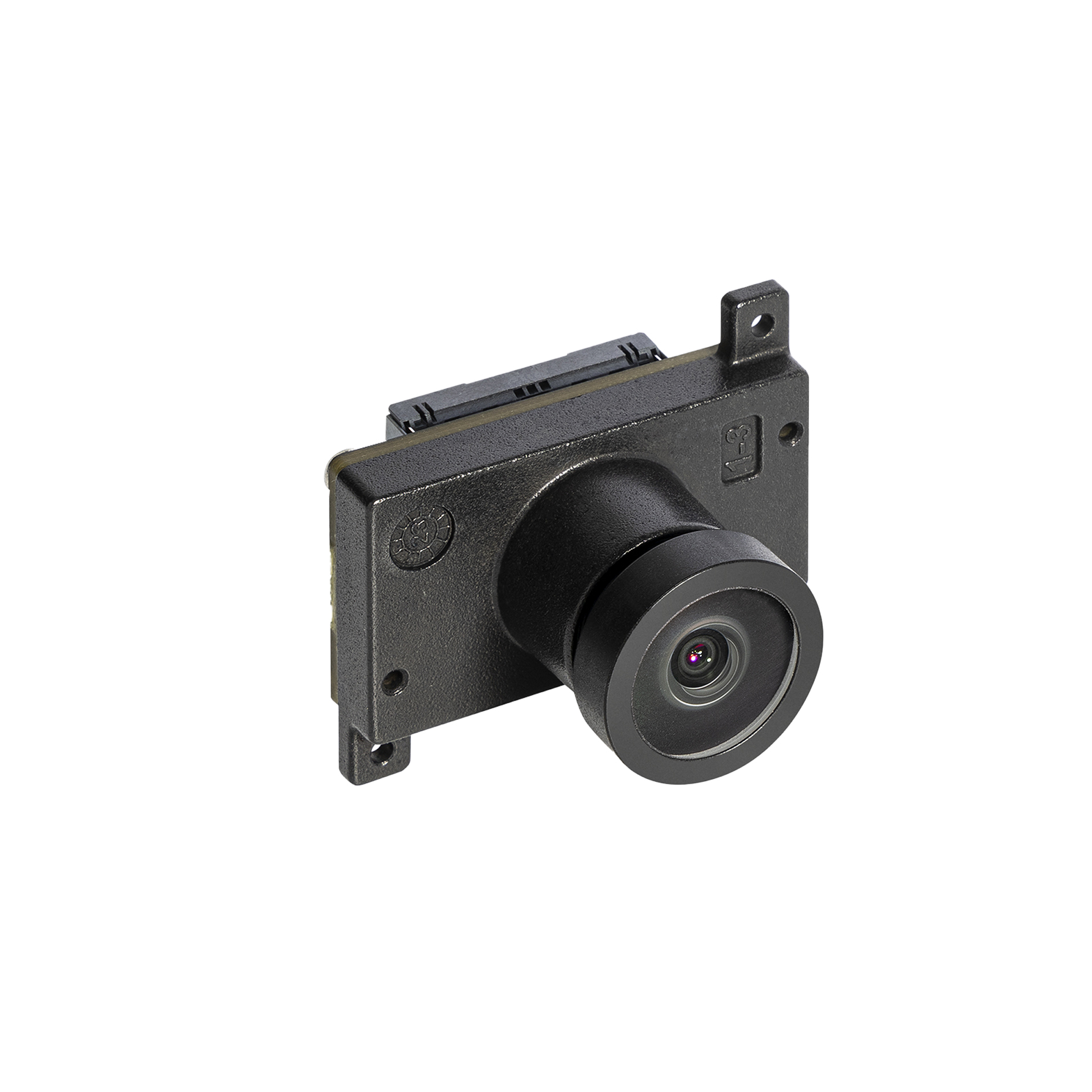

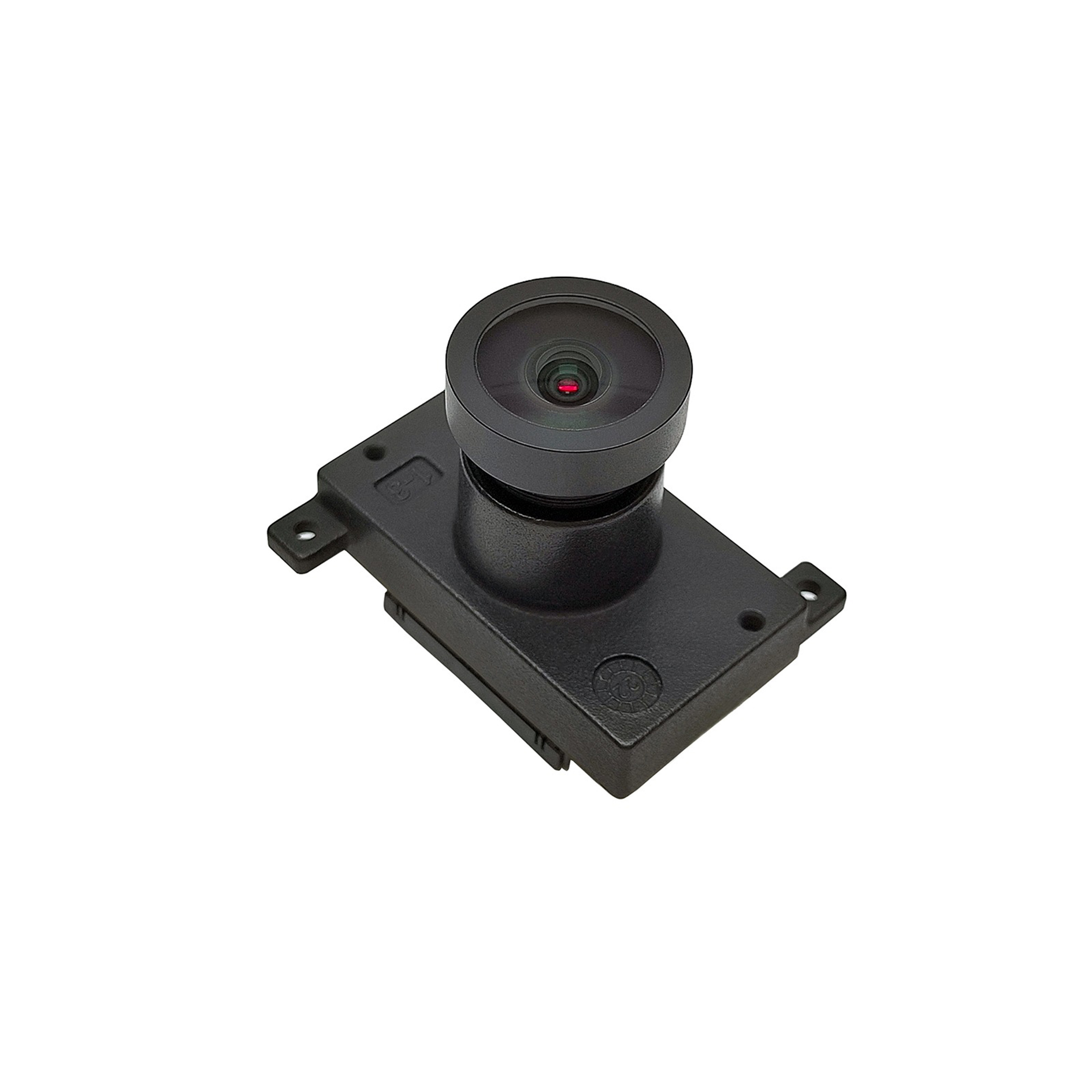

MCI081 IMX577 CMOS sensor MIPI Camera Module Versatile SoC Integration Camera Imager
The MCI081-MIPI-HXXX camera module features the high-performance SONY IMX577 CMOS sensor for superior imaging quality. It includes a factory-focused and glued M12 lens to ensure long-term optical stability and precision. This versatile module supports seamless integration across various SoC platforms for diverse applications.
Application :
Machine-vision
Intelligent transportation
Aeronautics and Astronautics
Industrial inspection
Advantages
Output format: Uncompressed RAW format
Industrial high performance
Support different focal length lens
Support external triggering
Multi−Camera synchronization
Resources
Technical Data
| Model | MCI081-MIPI-Hxxx |
| Resolution | 4056H x 3040V |
| Frame Rate | up to 240fps(raw10,1080P) |
| Sensor | SONY 12MP IMX577 RGGB |
| Output data | MIPI/RAW@10bit/12bit |
| Sensor Type | Rolling Shutter |
| Operating temp.range | -40°C～+85°C |
| Dimensions | 20mm*35mm*25mm |
| FOV | HFOV 61.2°/89° |
| Weight | <50g |
