MCI083 GMSL Camera Repeater
GMSL2 Repeater is designed by Meecoe Electronic Technology Co.,Ltd., which can realize one GMSL2 input and one GMSL2 output， so as to extend the transmission distance.
Application :
Autonomous Driving
Video Data acquisition vehicle
Laboratory
Advantages
Lossless data transmission
Low latency/ Microsecond level
Low insert loss
Suitable for various cameras
Resources
Technical Data

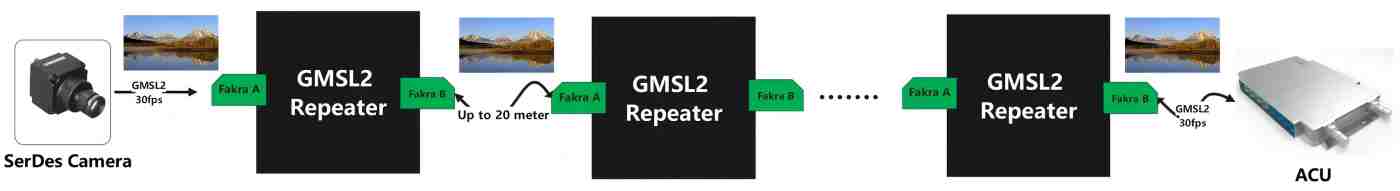

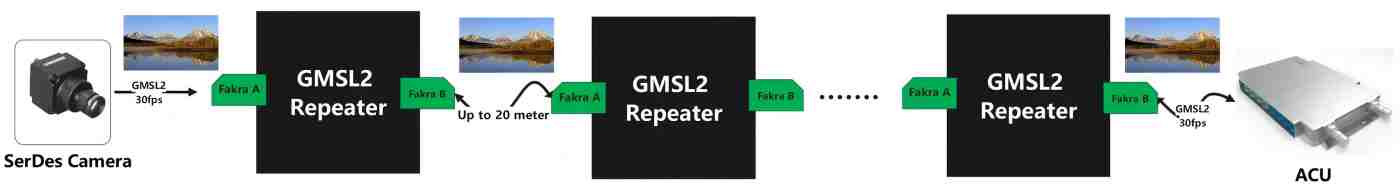

Diagram▼
Meecoe can provide Camera+Coaxial cable
| Transport Protocol | GMSL2 |
| Number of Input Port | 1CH |
| Number of Output Port | 1CH |
| Input Interface | 1*GMSL2 |
| Output Interface | 1*GMSL2 |
| Data Rate Supported | 1.5Gbps, 3Gbps, 6Gbps |
| Support Resolution | Up to 3840*2160 |
| Output synchronization accuracy | ＜10us |
| Power Supply | Yes |
| Connector | Fakra Z type |
| Operating temp.range | -40~+85℃ |
| Dimensions | L:87.5mm, W: 70.6mm, H:20mm |
| Color | Black |
| Weight | <150g |
| Product Number | MCI083 |
