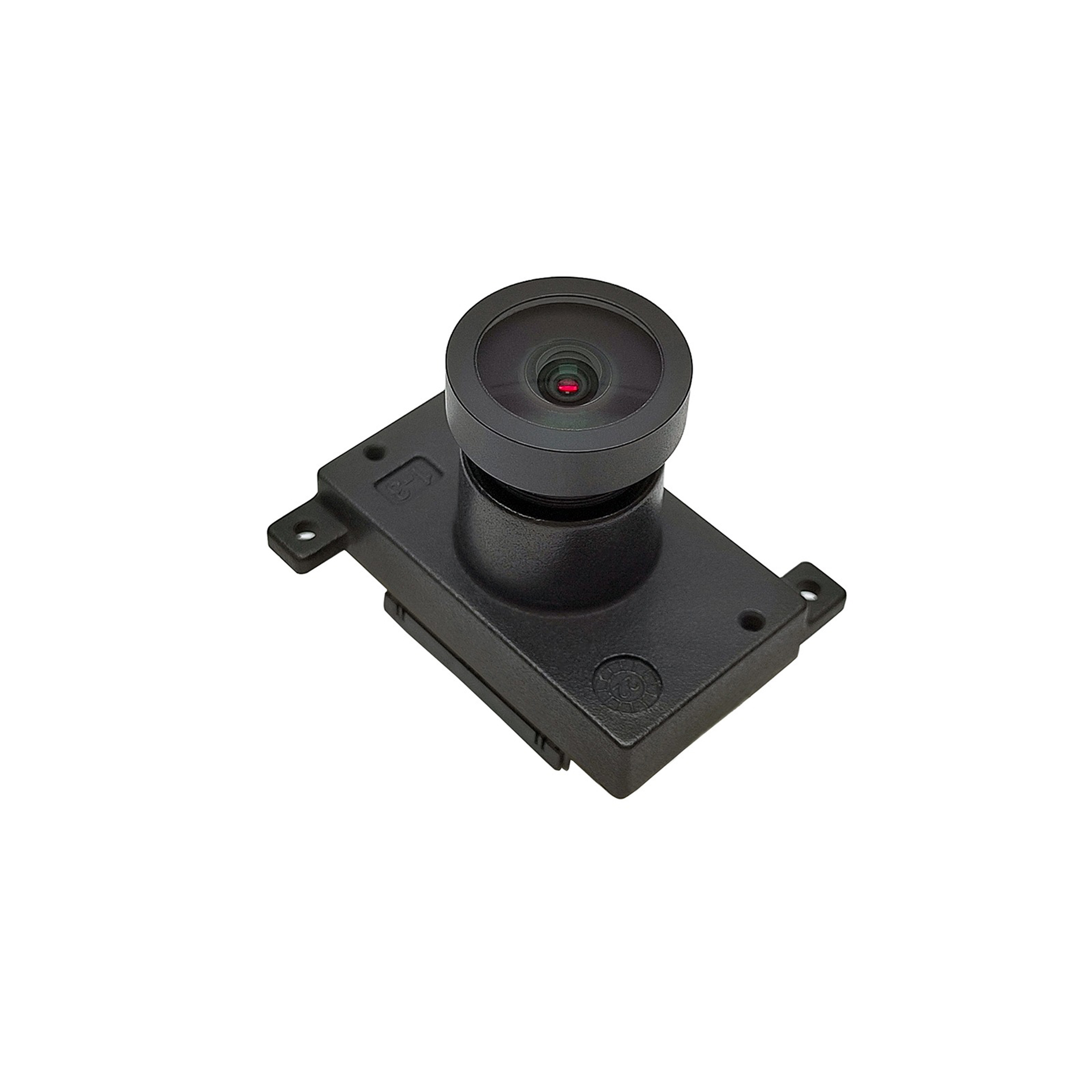

MCI078 MIPI Camera Module SONY IMX662 Sensor Camera Factory Focused M12 Lens
The MCI078 MIPI-HXXX camera module features the high-performance SONY IMX662 CMOS sensor. It comes standard with a factory-focused and secured M12 lens, ensuring optical precision out of the box. Engineered for versatility, this module supports seamless integration across various SoC platforms.
Application :
Machine-vision
Intelligent transportation
Aeronautics and Astronautics
Industrial inspection
Advantages
Output format: Uncompressed RAW format
Industrial high performance
Support different focal length lens
Support external triggering
Multi−Camera synchronization
Resources
Technical Data
| Model | MCI078-MIPI-HXXX |
| Resolution | 1920H*1080V |
| Frame Rate | Up to 60 fps |
| Sensor | SONY 2.13MP IMX662 RGGB |
| Output data | MIPI/RAW@10bit/12bit |
| Sensor Type | Rolling Shutter |
| Operating temp.range | -40°C～+85°C |
| Dimensions | 20mm*35mm*25mm |
| FOV HFOV | 29°/58°/96°/121° |
| Weight | <50g |
