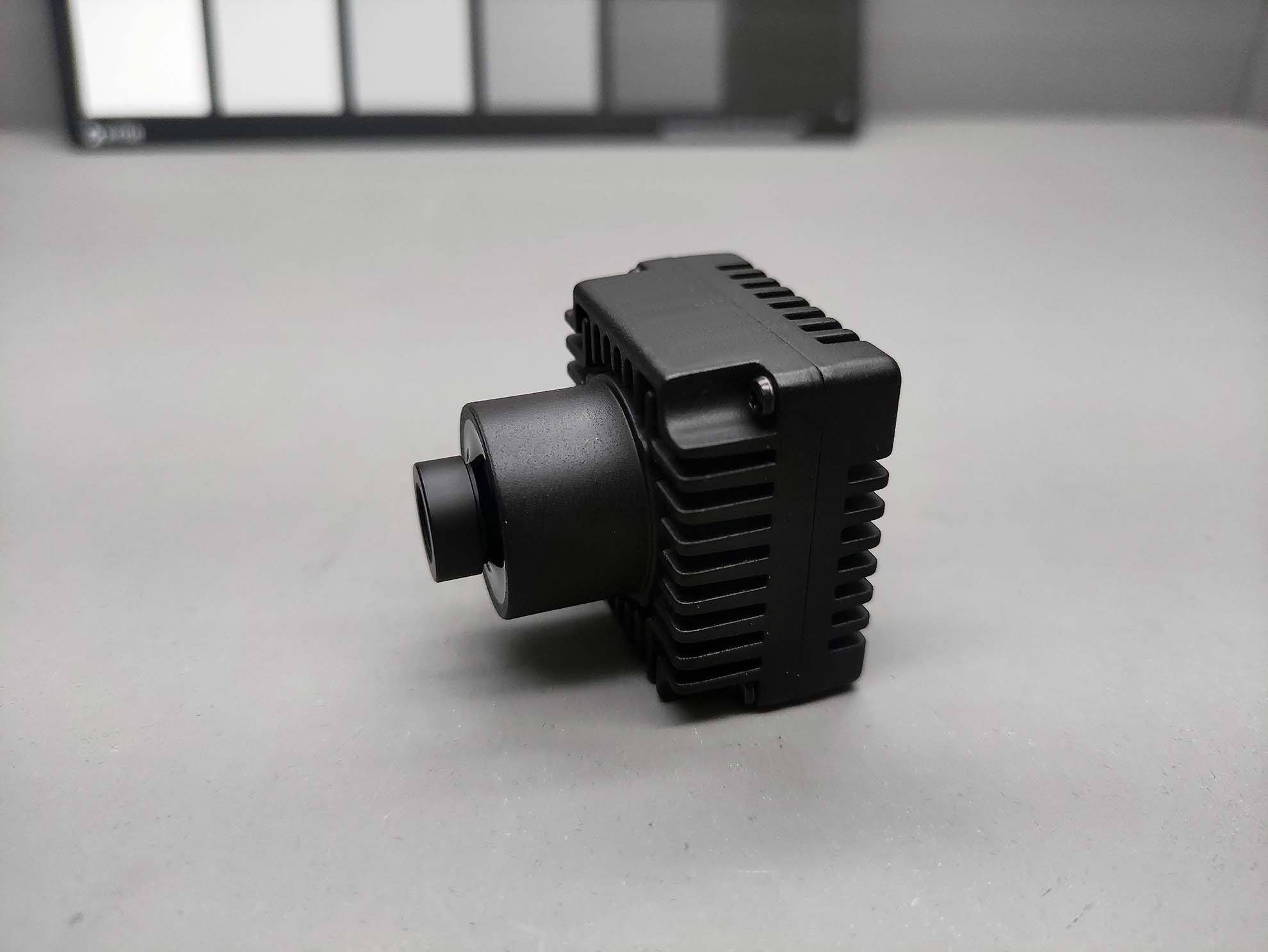

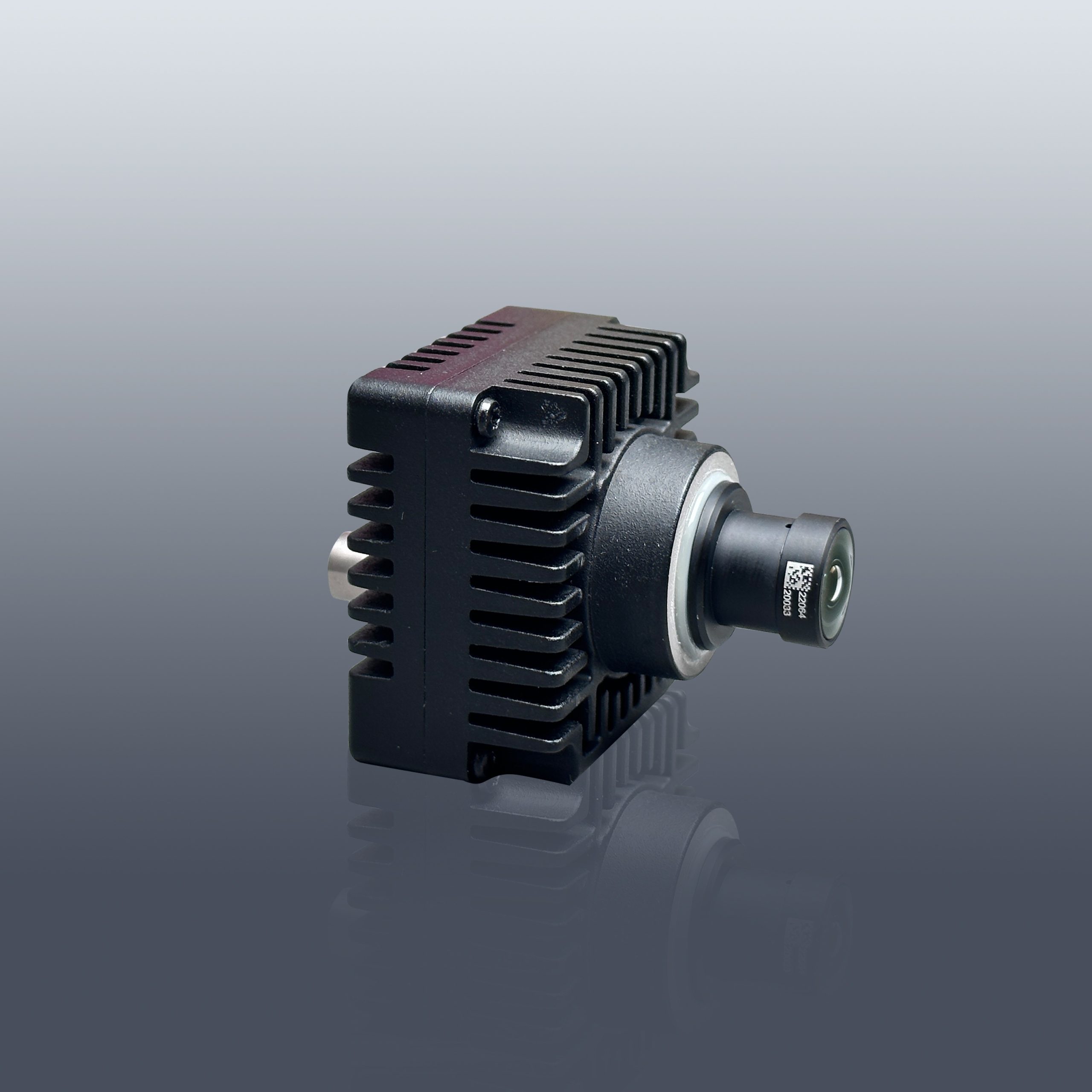

MCI003 5MP GMSL2 CAMERA
MCI003 camera module is equipped with SONY Semiconductor CMOS image sensor IMX490 and Maxim GMSL2 .
Features an automotive-grade sensor and a well-tuned ISP.
These components work together to produce exceptional image quality.
The device comes in a durable, IP67-rated enclosure.
M12/M15/M16/AA lenses are focused and glued in-house for stability.
Application :
-
Automotive
-
ADAS + Viewing Fusion
-
High Dynamic Range Imaging
-
Autonomous Driving
-
Robots
Advantages
-
Output format: Uncompressed YUV422 format
-
S-mount IP67 compliant lens focused and glued at our factory
-
Multi−Camera synchronization Support
-
Support different focal length lens
-
FCC , CE and RoHS
Resources
Technical Data
| Sensor | SONY 5.44MP IMX490 RGGB |
| ISP | GW5300 |
| Image Size | 1/1.55 inch CMOS |
| Output Pixels | 2880H*1860V |
| Pixel Size | 3um*3um |
| Frame Rate | 2880*1860@30fps |
| HDR Support | Yes |
| LFM | Yes |
| Output data | YUV422@8bit |
| Serializer | MAXIM MAX9295A |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V POC |
| Current | <300mA@12VDC |
| Connector | Amphenol Fakra(Z Code) |
|
Operating temp. range |
-40~+85℃ |
| Dimensions | W:40mm,L:40mm,H:23mm |
| Weight | <80g |
| Product Number | MCI003 |
