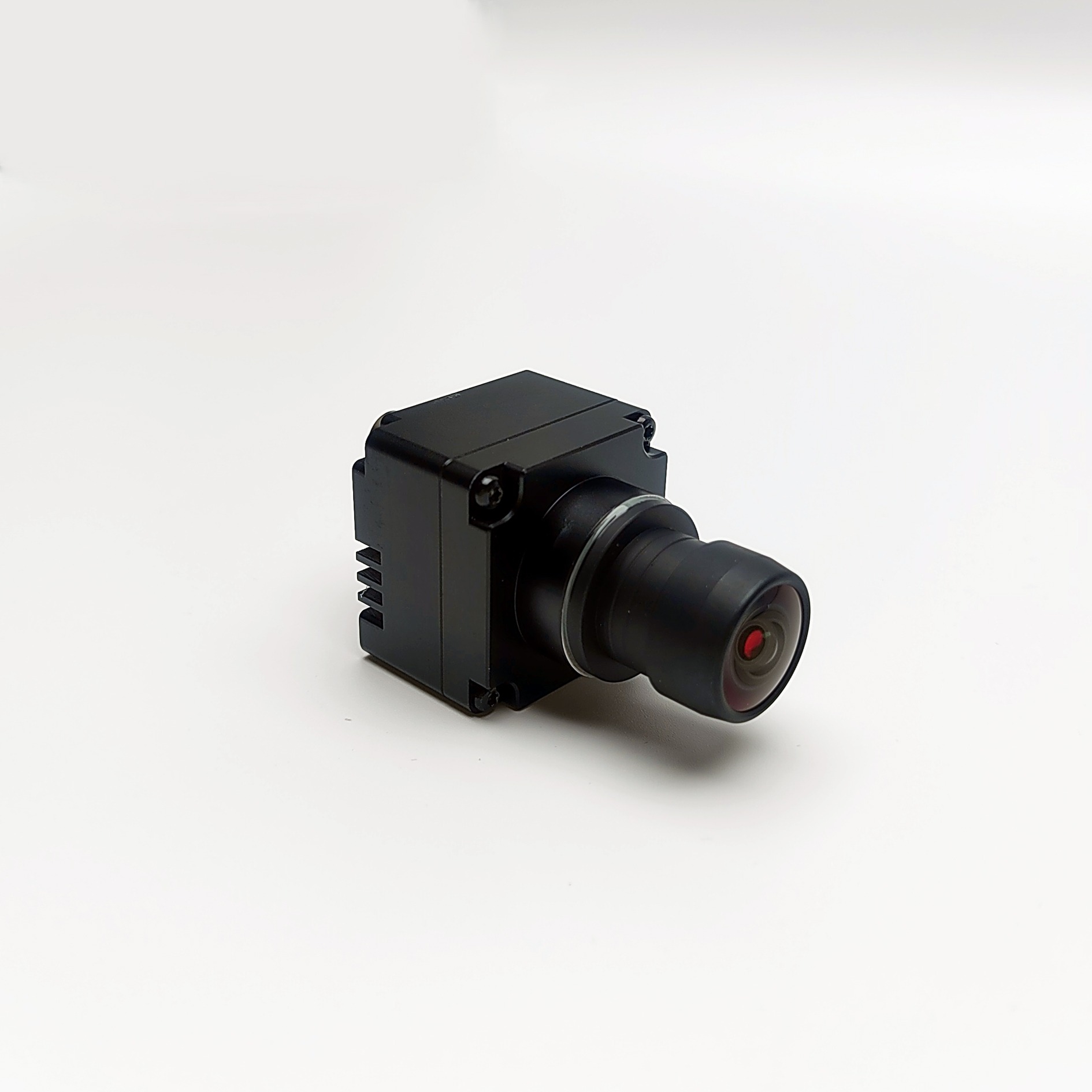

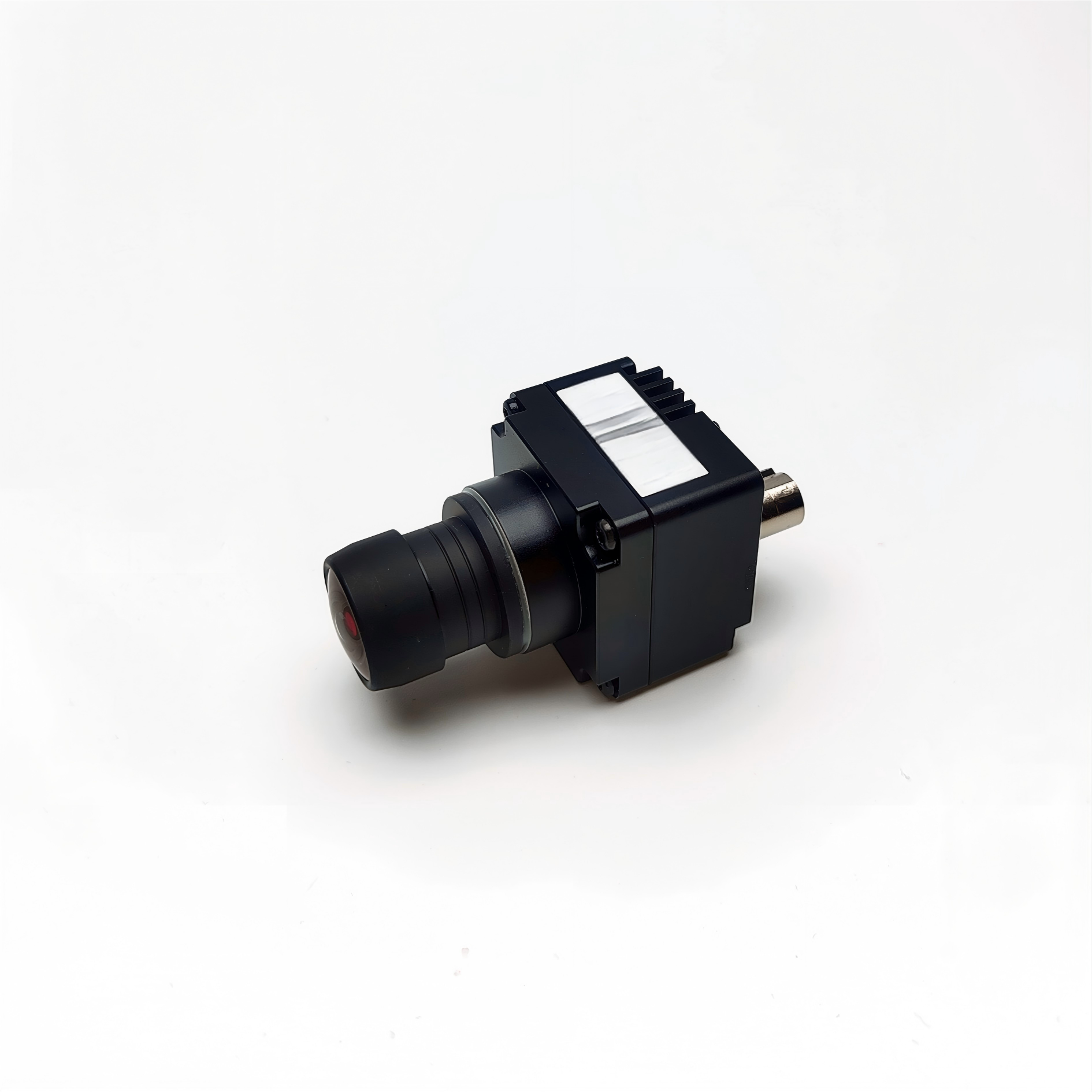

MCI082 FPD-Link III Camera AR0233 Sensor And Automotive-Grade ISP Camera
MCI082 FPD-Link camera module is equipped with On-semi CMOS image sensor AR0233 and TI FPDLink III. It has an automotive-grade sensor with a welltuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is supplied with an M12 lens that is focused and glued in our factory.
Application :
Automotive
ADAS + Viewing Fusion
High Dynamic Range Imaging
Autonomous Driving
Robots
Advantages
Output format: Uncompressed YUV422 format
Calibrate camera internal parameters
S-mount IP67 compliant lens focused and glued at our factory
Multi−Camera synchronization Support
Support different focal length lens
FCC, CE and RoHS
Resources
Technical Data
| Model | MCI082-FPDLink-Hxxx 2MP |
| Resolution | 1920H*1080V |
| Frame Rate | 1920*1080@30fps |
| Sensor | ONSEMI 2.6MP AR0233 RGGB |
| ISP | GW5200 |
| Output data | YUV422@8bit |
| Serializer | FPDLink III DS90UB953 |
| Sensor Type | Rolling Shutter |
| Operating temp.range | -40°C～+85°C |
| Dimensions | 30mm*30mm*22.5mm |
| FOV | HFOV 60°/100°/118°/196° |
