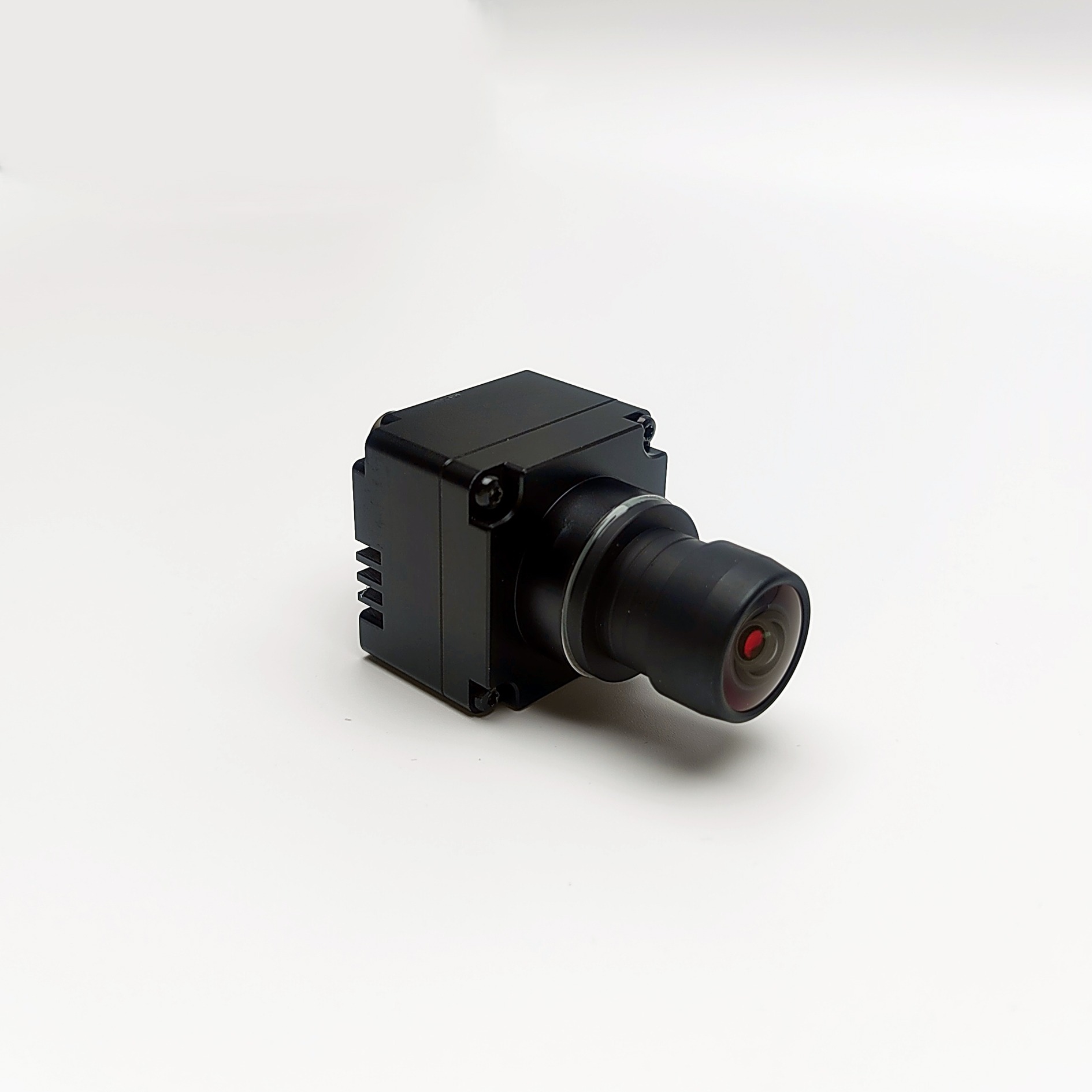

MCI001 2MP GMSL2 CAMERA IP67 Waterproof AR0233 GMSL2 Camera with M12 Lens
MCI001 camera module is equipped with ONSEMI CMOS image sensor AR0233 and Maxim GMSL2.
It has an automotive grade sensor with a welltuned Image Signal Processor (ISP) that produces exceptional image quality
It comes with an IP67-rated enclosure is supplied with an M12 lens that is focused and glued in our factory.
Application :
-
Automotive
-
ADAS + Viewing Fusion
-
High Dynamic Range Imaging
-
Autonomous Driving
-
Robots
Advantages
-
Output format: Uncompressed YUV422 format
-
S-mount IP67 compliant lens focused and glued at our factory
-
Multi−Camera synchronization Support
-
Support different focal length lens
-
FCC , CE and RoHS
Resources
Technical Data
| Sensor | ONSEMI 2.6MP AR0233 RGGB |
| ISP | GEO GW5200 |
| Image Size | 1/2.5 inch CMOS |
| Output Pixels | 1920H*1080V |
| Pixel Size | 3.0um*3.0um |
| Frame Rate | 1920*1080@30fps |
| HDR Support | Yes |
| LFM | Yes |
| Output data | YUV422@8bit |
| Serializer | MAXIM MAX9295A |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V POC |
| Current | <150mA@12VDC |
| Connector | Amphenol Fakra(Z Code) |
|
Operating temp. range |
-40~+85℃ |
| Dimensions | W:30mm,L:30mm,H:22.5mm |
| Weight | <50g |
| Product Number | MCI001 |
