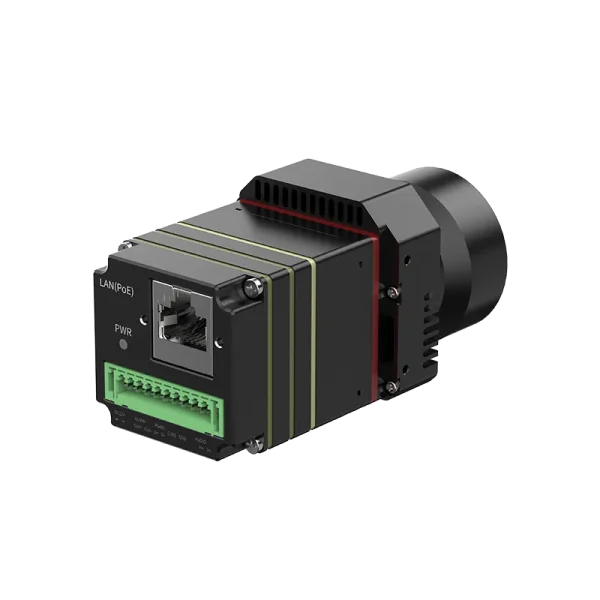

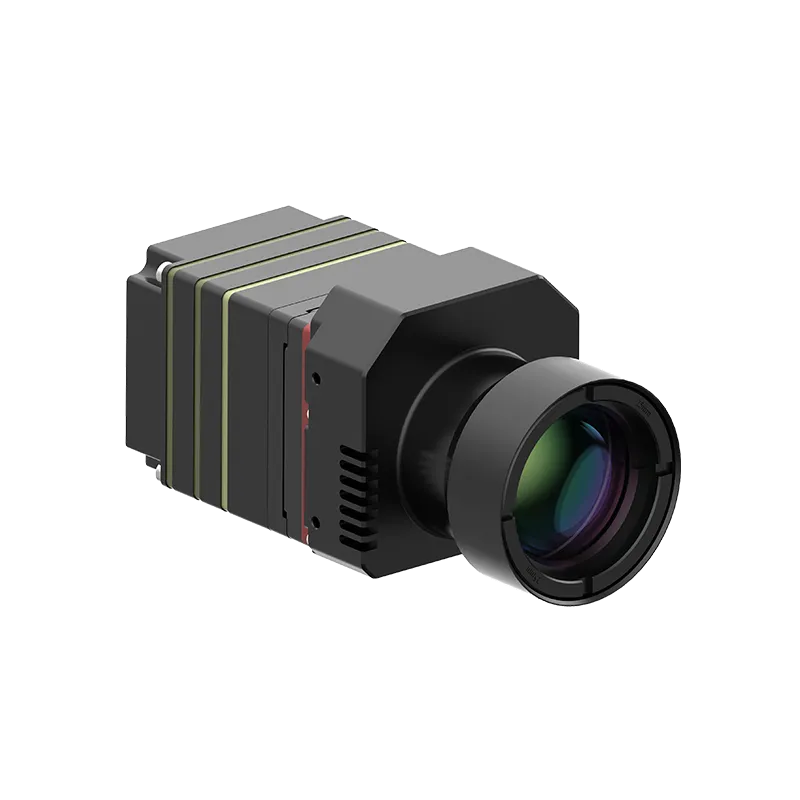

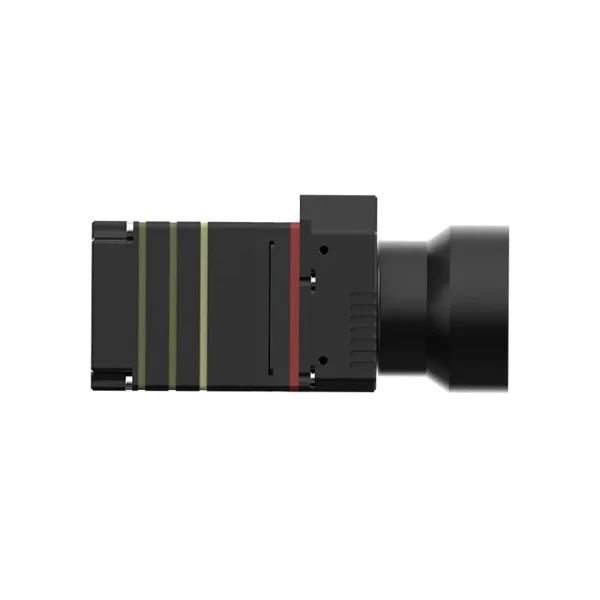

MON384 Fixed-mount Thermal Camera Multiple Lens Options High-Precision Network Type Temperature Measurement Thermal Imager
MON384 is a high-performance and high-precision network type temperature measurement thermal imager that uses a uncooled focal plane detector and offers multiple lens options.
Supports multiple protocols such as Modbus and Onvif, equipped with professional application software and universal SDK development package, with small size and low power consumption, making it easy to integrate industrial automation applications.
Application :
Industrial Manufacturing
Machine Vision
Power Monitoring
Railway Inspection
Advantages
High-Quality Image Output
TN430 can output high-quality infrared images with a resolution of 384×288, providing clear and delicate infrared thermal images for temperature data analysis and determination.
High-Speed Frame Rate And Real-Time Data Transmission
With a frame rate of up to 50Hz, TN430 can capture temperature changes at a very high speed. It is very suitable for applications requiring real-time monitoring of temperature changes. It enables synchronous temperature data output, easy for secondary analysis based on the site conditions.
Wide Measurement Range And Multiple Lens Options
With a wide measurement range from -20°C to +650°C, TN430 is suitable for industrial scenarios with various temperature requirements. The device utilizes a temperature compensation algorithm to adjust for environmental factors and ensure measurement accuracy and reliability.
Resources
Technical Data
|
Thermal Imaging Parameters |
||||||||||||||
|
||||||||||||||
|
Temperature Measurement Function |
||||||||||||||
|
||||||||||||||
|
Image and Video |
||||||||||||||
|
||||||||||||||
|
System Interface |
||||||||||||||
|
||||||||||||||
|
Device Specifications |
||||||||||||||
|
