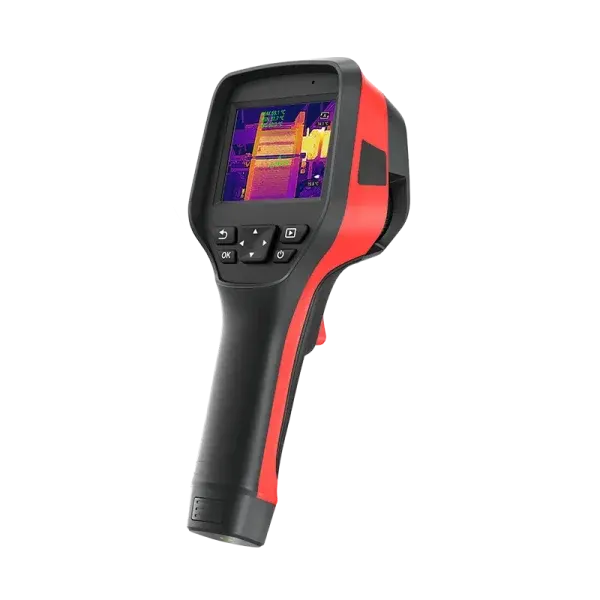

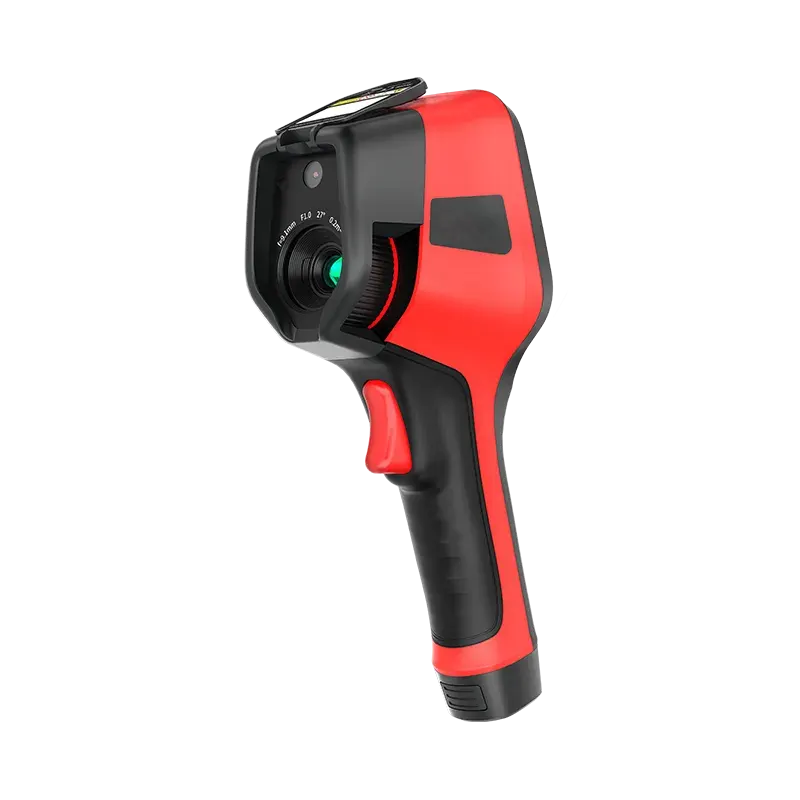

MC345 Handheld Thermal Camera

Request Price PDF Download

The MC345 features a 12μm infrared detector, providing 384×288 high-resolution thermal images for professional and accurate monitoring.

With a high sensitivity of 35mK, the device easily captures small hot spots for precise and reliable results.

Its temperature measurement range extends to 650°C, making it suitable for routine electric inspection and electronic circuit design.

The system also serves HVAC, industrial manufacturing, petrochemical sectors, and photovoltaic testing across many other demanding professional fields.

Application :

Circuit Design

Construction Inspection

Electric Routine Inspection

Industrial Manufacturing

Advantages

Resources

Technical Data

Advantages
High-Definition Thermal Images, Capturing Subtle Hot Spots

Equipped with a self-developed 384×288 high-pixel 12μm advanced-technology detector.

Capable of distinguishing 0.035°C temperature differences, easily capturing subtle hot spots.


Smart Upgrade For You To Handle Complexity With Simplicity

Support intelligent shooting, user customization, import and distribution of inspection task packages, simplifying the task process and improving routine inspection efficiency.

Support temperature trend analysis, helping users observe temperature distribution and changes in real time.

Support isotherm function to highlight the temperature segments or areas that need attention.

Support analysis software on the PC client and secondary analysis of video files.


Upgraded Performance For More Application Scenarios

-20°C~+650°C wider temperature range, suitable for more industrial temperature measurement scenarios.

IP54 and 2m drop protection, solid and durable.

Standard 32GB Micro SD card, expandable to 512GB, supporting temperature video recording.



Resources

[download]
Technical Data

Thermal Imaging

Detector Type

Uncooled infrared detector

Infrared Resolution

384×288

Pixel Size

12μm

Spectral Band

7.5-14μm

NETD

＜35mK (25°C,F1.0)

Frame Rate

30 Hz

Lens Focal Length

9.1mm

FOV

27°×20°

IFOV

1.31mrad

Focusing Mode

Manual focusing

Measurement Range

-20°C~+150°C; 100°C~650°C

Measurement Accuracy

±2°C or ±2% of readings, whichever is greater



Imaging Display

Display

3.5-inch touch screen, 640×480 resolution

Visible Light Camera

5 megapixels

Digital Zoom

1×, 2×, 4×, 8×

Palettes

10

Image Mode

Infrared, visible light, PIP, dual-spectrum fusion

Temperature Width Stretch

Automatic/Manual



Image Storage

Storage Medium

Standard 32GB MicroSD, up to 512G

Text Notes

Support

Voice Annotation

Support



Measurement and Analysis

Analysis Functions on the Device

Custom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature display

Supporting Software

PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)



Video Functions

Radiation Infrared Video Recording

Support

Non-radiation Infrared or Visible Light Video Recording

Support



System Functions

Intelligent Routine Inspection

Support

Communication Protocol

Wi-Fi, USB

Video Transmission

Support UVC video transmission

Laser Pointer

Support



Others

Battery

Rechargeable and detachable lithium-ion battery

Charging Mode

USB Type-C or desktop charger

Battery Life

About 6h (about 3h for a single battery)

Interface

USB Type-C, SD card

Tripod Socket

UNC 1/4-20 interface for tripod

Operating Temperature

-10°C~+50°C

Operating Humidity

10%~95% (non-condensing)

Storage Temperature

-20°C~+60°C

Ingress Protection Rating

IP54

Shock and Vibration

Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)

Weight and Dimensions

About 683.5g, 258.4×105.1×102.3mm

Authentication

CE/RoHS/CMA, etc.

Packing List

Thermal camera, 5V 3A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate,

package list, safety box

Product Number

MCI036
