MS30W Flagship Thermal Camera More delicate And Clearer Thermal Images

Request Price PDF Download

The MS30W features a new 12µm detector with 25mK sensitivity for incredibly clear and delicate thermal images.

This Android-based device uses intelligent hardware to support professional functions like trend analysis and variable diaphragm lenses.

It enables precise measurement across 25 points, lines, and areas while offering image freezing and electrical stabilization.

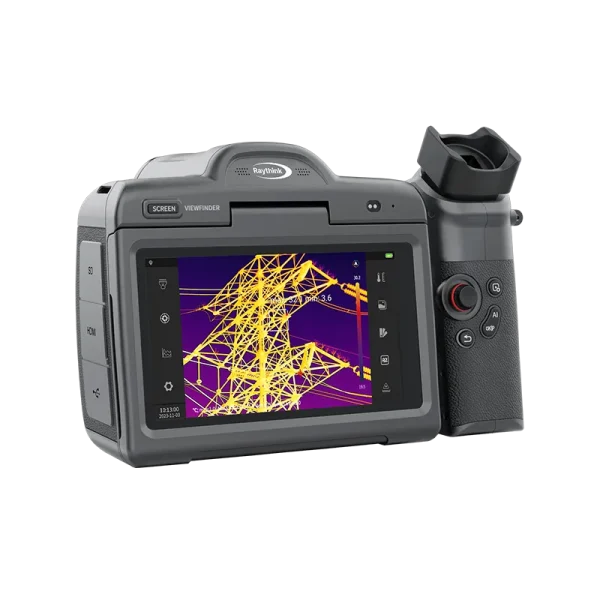

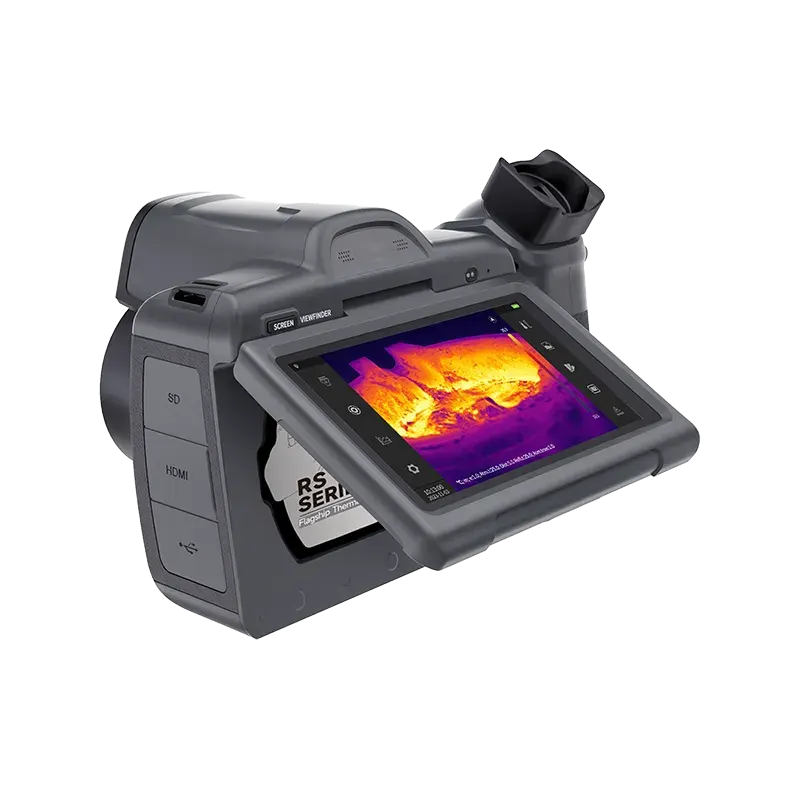

The integrated 5.5-inch touch screen ensures a highly intuitive and professional user experience for all thermal monitoring.

Application :

Electric Routine Inspection

High Temperature Material Monitoring

High-End Scientific Research

Chemical Routine Inspection

Advantages

Resources

Technical Data

Advantages
Clear Thermal Images, Precise Temperature Measurement

Equipped with a 12μm VOx detector, resolution of 640×512, supporting super-resolution up to 1280×1024.

Capable of distinguishing the temperature difference of 0.025°C, with high temperature measurement accuracy and more-detailed thermal images.

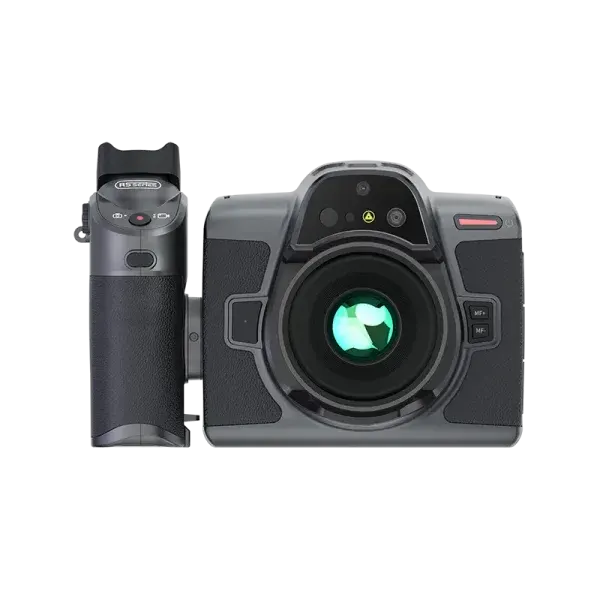

Various Lenses And Fast Focusing

Standard 25° lens, with optional wide-angle, telephoto, and super telephoto lenses.

Support macro lenses, flexible for diverse scenarios.


Functional Upgrade To Improve Efficiency

Android operating system, more convenient to operate

Support intelligent image stabilization, making temperature measurement images more stable

Support laser rangefinding and area measurement

Support up to 25 points/lines/areas to analyze more temperature details in the screen

Resources

[download]
Technical Data

Thermal Imaging

Detector Type

Uncooled infrared detector

Infrared Resolution

640×512

Pixel Size

12μm

Spectral Band

7.5-14μm

NETD

＜25mK (25°C,F1.0)

Frame Rate

25 Hz

Lens Focal Length

Standard lens: 17.7mm; super telephoto lens: 60.9mm; telephoto lens: 31.5mm; wide-angle lens: 9.5mm; macro lens (0.2×): 13mm; super macro lens (0.4×): 14.8mm.

FOV

Standard lens: 25°×20°; super telephoto lens: 7°×5.6°; telephoto lens: 14°×11.2°; wide-angle lens: 45°×36°.

IFOV

Standard lens: 0.68mrad; super telephoto lens: 0.2mrad; telephoto lens: 0.38mrad; wide-angle lens: 1.26mrad; Macro lens: One pixel corresponds to 60μm; super macro lens: One pixel corresponds to 30μm.

Focusing Mode

Electric micro focus, manual focusing, one-button center focus, automatic center focus, single-touch automatic focusing, laser-assisted focus

Measurement Range

-20°C~+150°C, 100°C~650°C; optional: 400°C~+1500°C

Measurement Accuracy

±2°C or ±2% of readings, whichever is greater



Imaging Display

Display

5.5-inch LCD touch screen, resolution 1920×1080

Visible Light Camera

13 megapixels

Digital Zoom

1× ~ 10×

Palettes

19 options

Image Mode

Infrared, visible light, PIP, dual-spectrum fusion

Temperature Width Stretch

Support



Image Storage

Storage Medium

Standard 64GB MicroSD. Support SD, SDHC, and SDXC, up to 2TB.

Text Notes

Support

Voice Annotation

Support



Measurement and Analysis

Analysis Functions on the Device

Support up to 25 movable points, lines, frames, circles and polygons, and up to 5 preset modes

Laser Rangefinding

Support

Area Measurement

Support

Hygrothermograph

Support

Position

Support

Temperature Difference Analysis

Support

Trend Analysis

Supports temperature trend recording and analysis.

Image Freezing

Support

Analysis Report

PDF format. Support editing and template importing on the PC client.

Supporting Software

PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)



Video Functions

Radiation Infrared Video Recording

Support compressed full radiation video recording (.irv), up to 15Hz video recording

Non-radiation Infrared or Visible Light Video Recording

Standard MP4 video recording



System Functions

Intelligent Routine Inspection

Support. General task package import and editing, standard and automatic naming of images

Communication Protocol

Wi-Fi, Bluetooth, USB



Others

Battery

9000mAh lithium-ion battery, field-replaceable, fast charging

Charging Mode

USB Type-C or desktop charger

Battery Life

Continuous operating time ≥ 3 hours (depending on the actual environment and service conditions)

Interface

USB3.0 Type-C, SD card, SIM card, Mini HDMI

Tripod Socket

UNC 1/4-20 interface for tripod

Operating Temperature

-15°C~+50°C

Operating Humidity

10%~95% (non-condensing)

Storage Temperature

-40°C~+70°C

Ingress Protection Rating

IP54

Shock and Vibration

Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)

Weight and Dimensions

About 1.3kg (with battery), 278×116×113mm

Authentication

CE/RoHS/CMA, etc.

Packing List

Thermal camera, manual, calibration certificate, quick operation guide, data download card, certificate of qualification, multi-country adapter,

USB data cable, lithium-ion battery×3, portable bag, charging cradle, HDMI cable, hand strap, backpack strap, SD card, charging stand,

standard lens.

Product Number

MCI040
