MS130W Flagship Thermal Camera Clear image in high quality

Request Price PDF Download

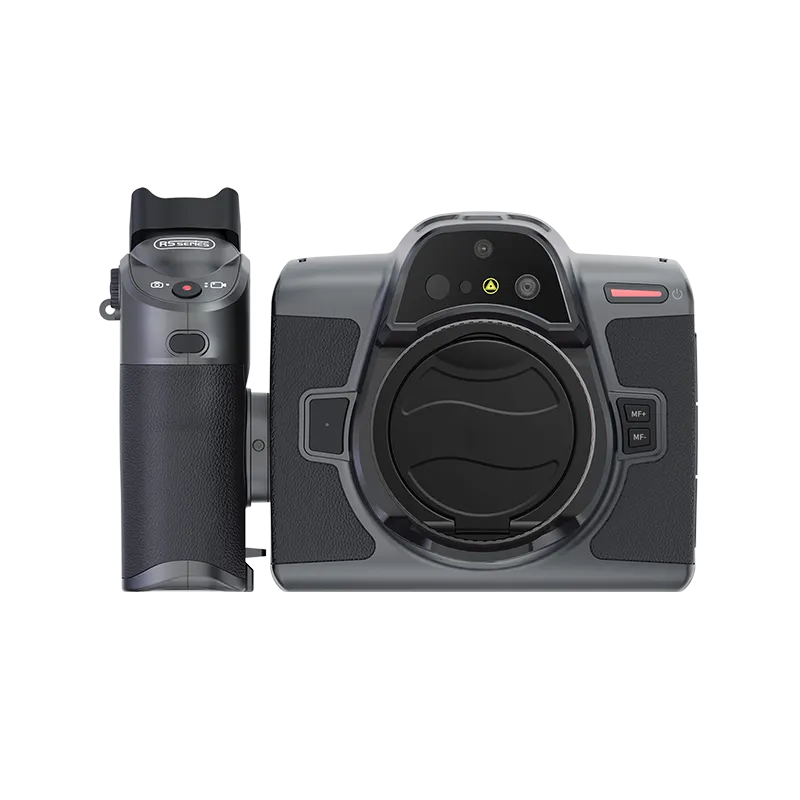

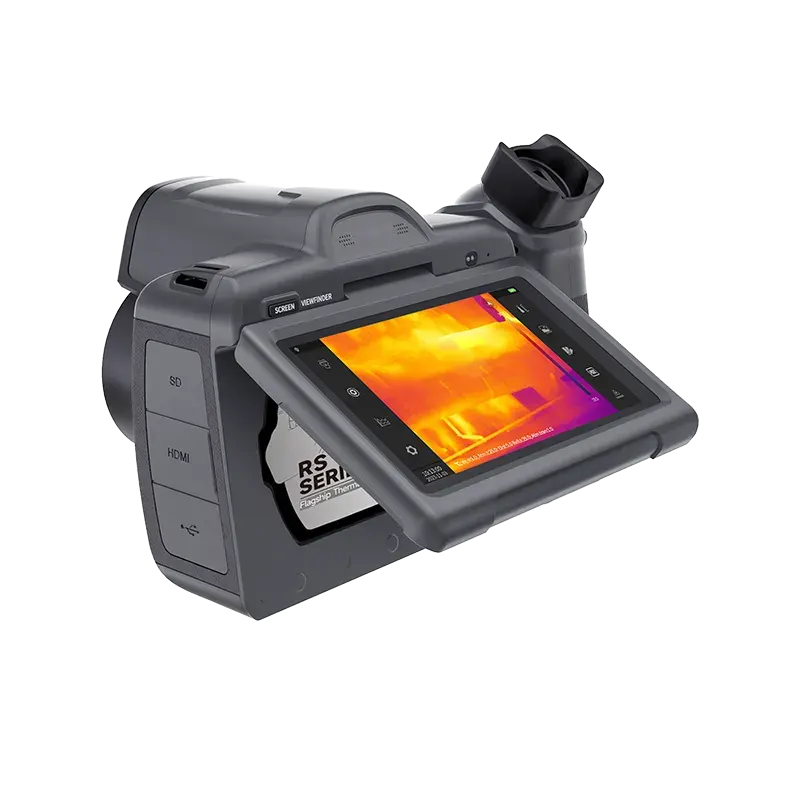

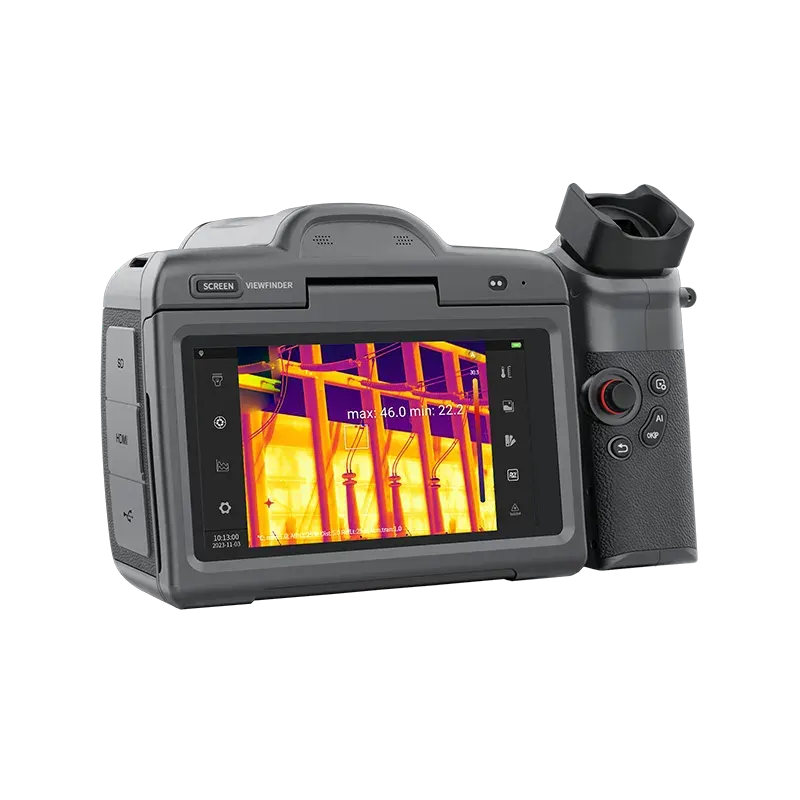

The MS130W is Infraroadtech’s first 1280×1024 thermal camera. It is a high-performance and high-pixel device for scientific research. The camera features a self-developed new-generation VOx infrared detector. This detector provides a thermal sensitivity as low as 25mK. It uses intelligent image algorithms and precise temperature measurement algorithms. These features provide clearer infrared images and higher measurement accuracy. The Android operating system supports intelligent applications and miscellaneous functions. It includes a 5.5-inch angle-adjustable display and a rotatable handle. This design brings a better experience meeting the ergonomics requirements.

Application :

Electric Routine Inspection

Microelectronics

High-End Scientific Research

Nondestructive Testing

Advantages

Resources

Technical Data

Advantages
Clear Thermal Images, Precise Temperature Measurement

Equipped with a 12μm uncooled infrared detector, with a resolution of 1280×1024, providing up to 2560×2048 HD super-resolution infrared thermal images.

NETD as low as 25mK and a high measurement accuracy to generate more delicate thermal images.


Various Lenses And Fast Focusing

Standard 25° lens, with optional wide-angle, telephoto, super telephoto, and macro lenses, flexible for diverse scenarios.

Support multiple focusing methods such as manual focus, auto focus, laser focus, auto focus, and continuous auto-focusing.


AI Empowerment For Efficient Work

Android operating system, more convenient to operate

Support intelligent image stabilization, making temperature measurement images more stable

Support laser rangefinding and area measurement.

Support up to 35 points/lines/areas to analyze more temperature details in the screen.

Resources

[download]
Technical Data

Thermal Imaging

Detector Type

Uncooled infrared detector

Infrared Resolution

1280×1024

Pixel Size

12μm

Super Resolution

2560×2048

Spectral Band

7.5-14μm

NETD

＜25mK (25°C,F1.0)

Frame Rate

30 Hz

Lens Focal Length

Standard lens: 34.9mm; wide-angle lens: 19.8mm; telephoto lens: 72.9mm; macro lens (0.2×): 17.8mm; super macro lens (0.4×): 15.2mm

FOV

Standard lens: 25°×20°; telephoto lens: 12°×9.6°; wide-angle lens: 45°×36°

IFOV

Standard lens: 0.34mrad; telephoto lens: 0.17mrad; wide-angle lens: 0.6mrad; macro lens: One pixel corresponds to 50μm; super macro lens: One pixel corresponds to 25μm.

Focusing Mode

Manual focus,electri micro focus, one-button center focus, automatic center focus,single-touch automatic focus, laser-assisted focus

Minimum Imaging Distance

Standard lens: 0.5m; telephoto lens: 2.3m; wide-angle lens: 0.2m; macro lens: 46mm; super macro lens: 13mm;

Measurement Range

Standard: -20°C~+150°C (low temperature range), 150°C~800°C (medium temperature range), 400°C~2000°C, other ranges (high temperature range)



Imaging Display

Display

5.5-inch LCD touch screen, resolution 1920×1080

Visible Light Camera

13 megapixels

Digital Zoom

1–15 times, continuously adjustable roller

Palettes

19 options

Image Mode

Infrared, visible light, PIP, dual-spectrum fusion

Temperature Width Stretch

Support



Image Storage

Storage Medium

Standard 64GB MicroSD. Support SD, SDHC, and SDXC, up to 2TB.

Text Notes

Support

Voice Annotation

Support



Measurement and Analysis

Laser Rangefinding

Support

Area Measurement

Support

Position

Support

Temperature Difference Analysis

Support

Trend Analysis

Supports temperature trend recording and analysis.

Image Freezing

Support

Analysis Report

PDF format. Support editing and template importing on the PC client.

Supporting Software

PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)



Video Functions

Radiation Infrared Video Recording

Support compressed full radiation video recording (.irv), up to 15Hz video recording

Non-radiation Infrared or Visible Light Video Recording

Standard MP4 video recording

Radiation Infrared Video Stream Transmission

Analysis at about 25Hz on PC

Non-radiation Infrared Video Stream Transmission

RTSP H.264

Video Resolution

1920×1080



System Functions

Intelligent Image Stabilization

Support

Intelligent Panoramic Stitching

Support

Intelligent Routine Inspection

Support. General task package import and editing, standard and automatic naming of images

Routine Inspection Record Self-inspection

Support

Dual-Spectrum Video Recording

Simultaneous infrared video and visible light video recording, in MP4 format.

Communication Protocol

Wi-Fi, Bluetooth, USB

Voice Control

Voice assistant, quick command recognition

Flashlight

Support



Others

Microphone/Speaker

Support

Battery

9000mAh lithium-ion battery, field-replaceable, fast charging

Charging Mode

USB Type-C or desktop charger

Battery Life

Continuous operating time ≥ 3 hours (depending on the actual environment and service conditions)

Interface

USB3.0 Type-C, SD card, SIM card, Mini HDMI

Tripod Socket

UNC 1/4-20 interface for tripod

Operating Temperature

‘-15°C~+50°C

Operating Humidity

10%~95% (non-condensing)

Storage Temperature

-40°C~+70°C

Ingress Protection Rating

IP54

Shock and Vibration

Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)

Weight and Dimensions

<1.7kg (with battery), 140×210×115mm

Authentication

CE/RoHS/CMA, etc.

Product number

MCI041
