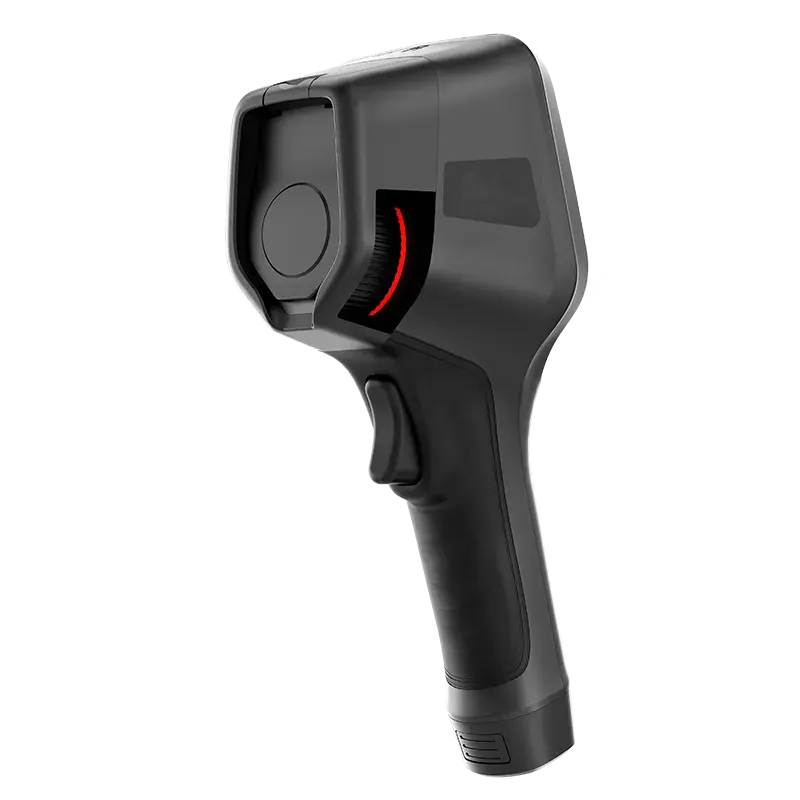

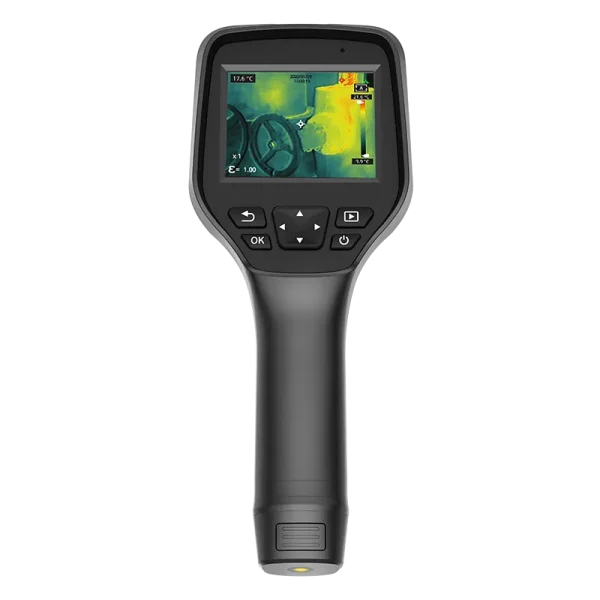

MG6F OGI Handheld Camera All Round Gas Determination IICT4 Explosion-proof Rating

Request Price PDF Download

The MG6F uses an uncooled VOx detector with high spatial resolution. This device features high sensitivity and advanced infrared thermal imaging technology. It enables non-contact and visual leak location for dozens of gases. These include Sulfur Hexafluoride (SF₆), Ammonia (NH₃), and Ethylene (C₂H₄). It also detects Propylene (C₃H₆) and other specific industrial gases. The series is ideal for gas security and emission management tasks. It serves equipment maintenance in oil, gas, and petrochemical industries. This solution also supports environmental protection and electric utility applications.

Application :

Electric Power and Energy

Emergency Response and Environmental Protection

Oil exploitation

Petrochemical

Advantages

Resources

Technical Data

Advantages
Customized Filter Detector For Clearer Images

Equipped with a 640×512 customized band-pass filter detector to eliminate stray light interference; capable of distinguishing a temperature difference of 0.023°C, capturing gas microleakage.

Spatial resolution as low as 0.63mrad, providing wider working distances or better gas details.



Versatile, Which Is The Best Helper For Routine Inspections

Simultaneous observation of thermal imaging and visible light to easily locate gas leaks

High accuracy of temperature measurement, easy to meet the dual tasks of gas leakage detection and temperature measurement

5-inch touch screen+ complete analysis functions, easy to facilitate routine inspection tasks



ⅡC T4 Explosive-Proof, Safe And Reliable

Ex ic ⅡC T4 explosive-proof rated, suitable for security applications in explosive-proof application such as oil and natural gas routine inspections.

Resources

[download]
Technical Data

Thermal Imaging Parameters

Detector Type

Uncooled infrared detector

Infrared Resolution

640×512

Spectral Band

Central wavelength 10.55μm

Detectable Gases

Sulfur Hexafluoride (SF₆), Ammonia (NH₃), Ethylene (C₂H₄), Propylene (C₃H₆) and other gases

Pixel Size

12μm

Thermal Sensitivity (NETD)

23mK

Spatial Resolution (IFOV)

0.63mrad

Image Frequency

30Hz

Lens Focal Length

19mm

Field of view (FOV)

23°×18°

Focus Mode

Manual

Object Temperature Range

-20°C~+120°C

Temperature Accuracy

±2% or ±2°C



Camera Functions

Temperature Measurement Mode

Center point/Hot and cold spot tracking and temperature display

Customized Measurement on Points, Lines, and Areas

Movable points/lines/areas; up to 10 points, 10 areas, and 10 lines

Measurement Unit

Celsius, Fahrenheit, Kelvin

Emissivity Settings

0.01~1.00, step size 0.01

Ambient Temperature Settings

-10°C~+50°C, step size 1°C

Distance Settings

1~20m, step size 1m

Image Mode

Infrared, visible light, dual-spectrum fusion, PIP

Palettes

10

Temperature Alarm

Available

Alarm Type

Image Alarm

Temperature Width Stretch

Manual/Auto temperature range

Laser Pointer

Available

Visible Light Camera

5 megapixels

Video/Photo Storage

XX-IR.jpg (Infrared image with temperature data) and XX-DC.jpg (visible-light image); videos without data.

Voice Note

Available

Language

English, Japanese, Poland, Russian, Korean, Hungarian, Bap, German, French,Spain, Italy, Turkey, and Traditional Chinese

Display Size

3.5-inch touch screen (480×640)

Image Naming

Auto/manual naming, naming by scanning QR code

Memory Card

Standard 32GB Micro SD card

Battery Type

Rechargeable and detachable lithium-ion battery

Power Supply

USB TypeC

Connecting Method

USB, SD card, Wi-Fi (AP mode or networking mode)

Battery Charging Time

About 3h

Battery Operating Time

About 3h

Power Management

Automatic shutdown: 5 minutes, 10 minutes, 20 minutes, never



Measurement and Analysis

Laser Pointer

Available



System Functions

Temperature Alarm

Available



Others

Analysis Software

PC & App

Tripod Support

Available

Operating Temperature

-10°C~+50°C

Storage Temperature

-20°C~+60°C

Relative Humidity

10%~95%, non-condensing

Drop Protection

2m

Ingress Protection Rating

IP54(IEC 60529)

Shock and Vibration

Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)

Dimensions

258.4×105.1×102.3(mm)

Weight

About 670g

Certificaitons

CE/ROHS, etc.

Packing List

5V 3A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list

Product Number

MCI042
