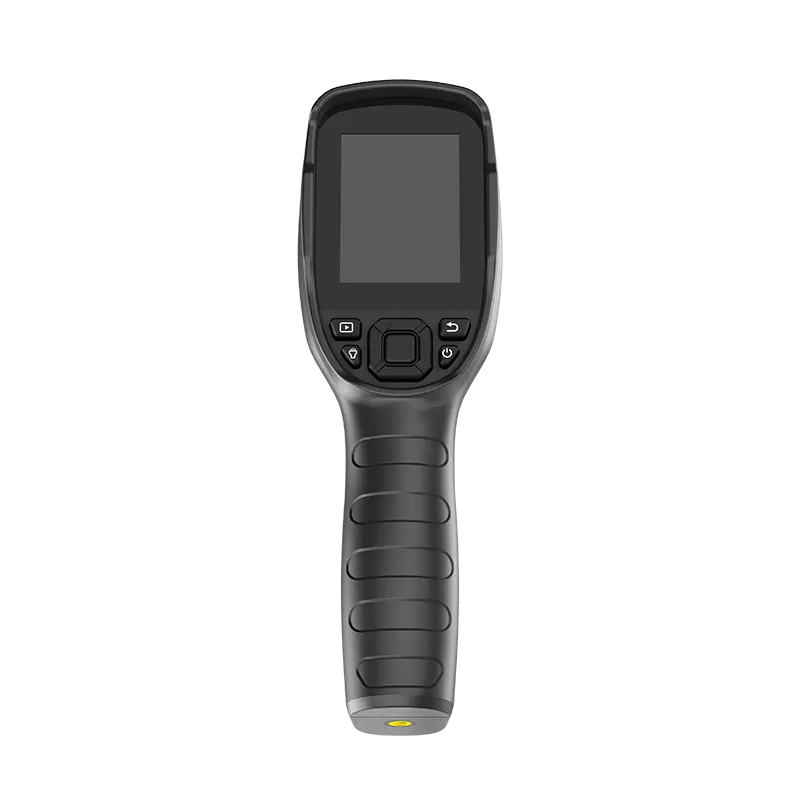

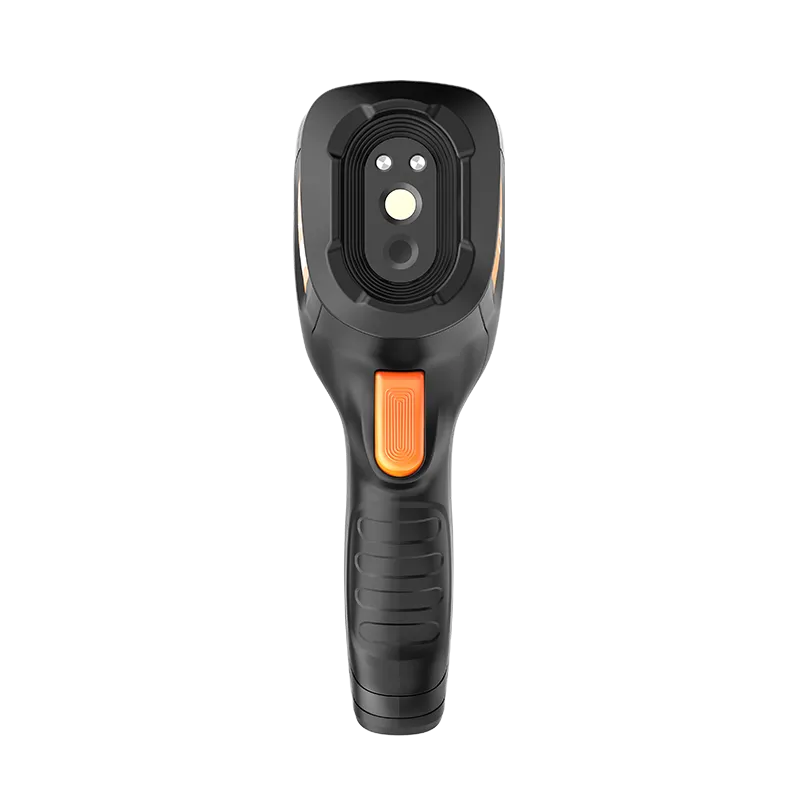

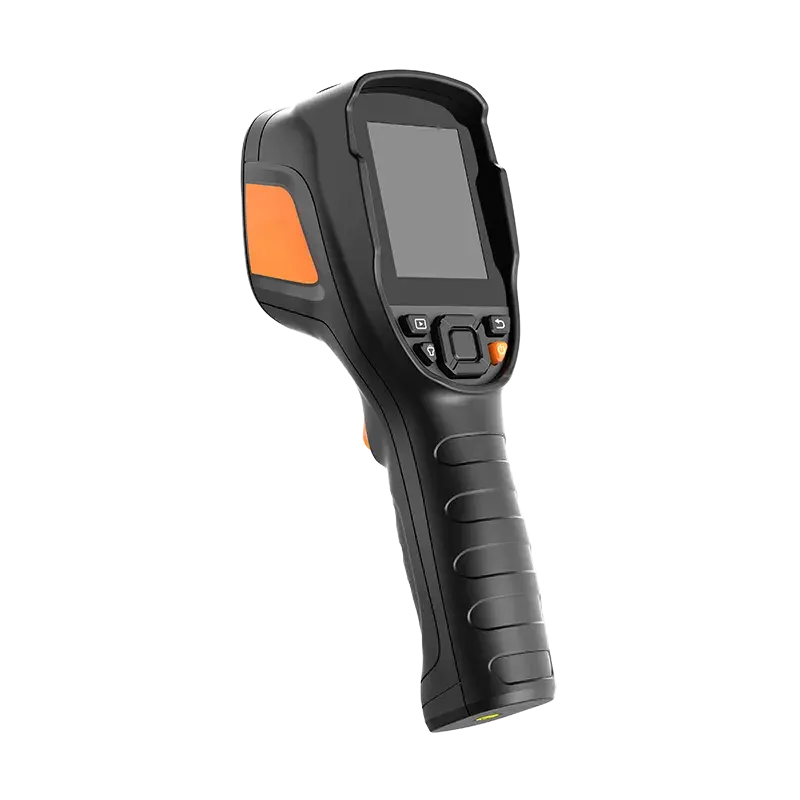

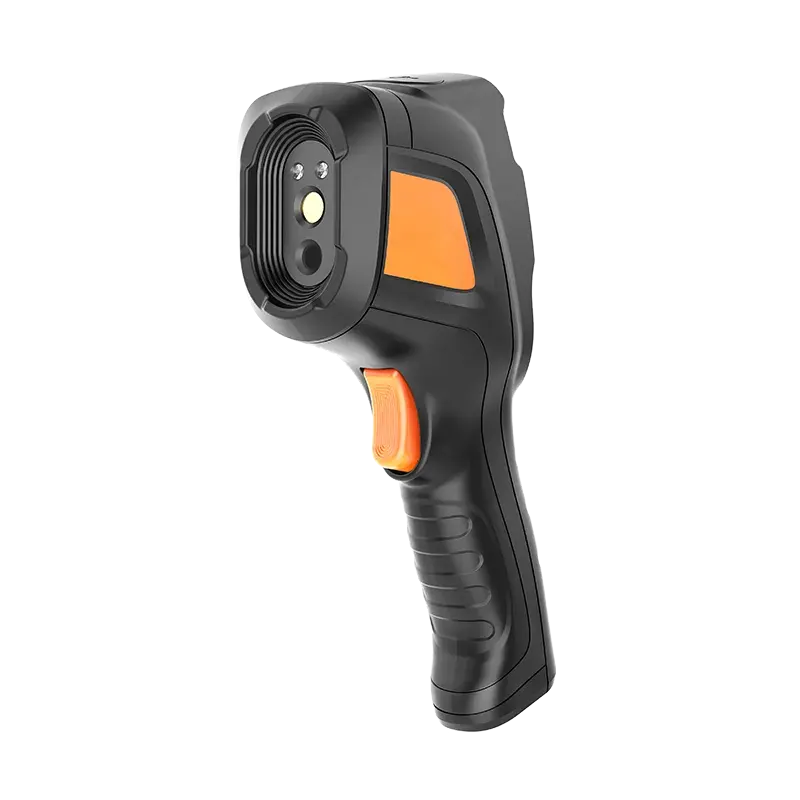

MF300 Pro+ Handheld Thermal Camera Professional Grade Auto Fixed Focus Infrared Camera Type-C Charging

Request Price PDF Download

The MF300 Pro+ handheld thermal camera is equipped with a high-sensitivity infrared detector featuring a 256×192 resolution for professional use.

Based on an intelligent image algorithm, this device generates clearer and sharper thermal images for more accurate temperature analysis.

The product has been completely upgraded to provide users with a better, more efficient working experience across various industrial applications.

Application :

Power Maintenance

Equipment Inspection

HVAC Leak Detection

Automotive Maintenance

Advantages

Resources

Technical Data

Advantages

Image+: distinguish smaller temperature differences and more

Feature+: professional grade, full services based on thermal sensors, catering to all industrial control scenarios

Performance+: rugged, easy to use, and quick to deploy

Software+: complete software ecosystem

Resources

[download]
Technical Data

Thermal Imaging

Detector Type

Uncooled infrared detector

Infrared Resolution

256×192

Al Real-time Super-resolution

320×240

Pixel Size

12μm

Spectral Band

7.5-14μm

NETD

＜40mK (25°C,F1.0)

Frame Rate

25 Hz

Lens Focal Length

3.2mm

FOV

56°×42°

IFOV

3.8mrad

Focusing Mode

Fixed focus

Minimum Imaging Distance

0.3m

Measurement Range

-20°C~+150°C, 100°C~550°C

Measurement Accuracy

±2°C or ±2% of readings, whichever is greater



Imaging Display

Display

2.8 inch, 320×240

Visible Light Camera

2 megapixels

Digital Zoom

1×, 2×, 4×

Palettes

7 options

Image Mode

Infrared, visible light, PIP, dual-spectrum fusion

Temperature Width Stretch

Auto



Image Storage

Storage Medium

Standard 32GB MicroSD, up to 128G



Measurement and Analysis

Analysis Functions on the Device

Central temperature point/Highest temperature point/Lowest temperature point/3 custom points

Supporting Software

PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)



System Functions

Communication Protocol

USB, WiFi

Alarm Type

Highest/Lowest temperature alarm in full frame; Image pop-ups, flash prompts; Auto image capture at alarm time (with temperature data).

Power Management

Auto shut-down setting



Others

Battery

Built-in rechargeable lithium-ion battery

Charging Mode

USB Type-C

Battery Life

About 15h

Interface

USB Type-C, SD card

Tripod Socket

UNC 1/4-20 interface for tripod

Operating Temperature

-10°C~+50°C

Operating Humidity

10%~95% (non-condensing)

Storage Temperature

-20°C~+60°C

Ingress Protection Rating

IP54

Shock and Vibration

Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)

Weight and Dimensions

About 520g, 237×75×92mm

Authentication

CE/RoHS/CMA, etc.

Packing List

Infrared camera×1, USB cable, 32GB SD card, user manual, storage bag, certificate of qualification, calibration certificate

Product Number

MCI030
