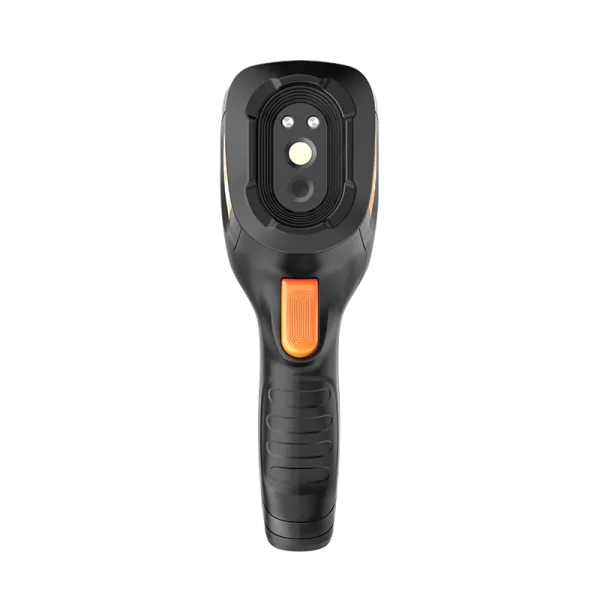

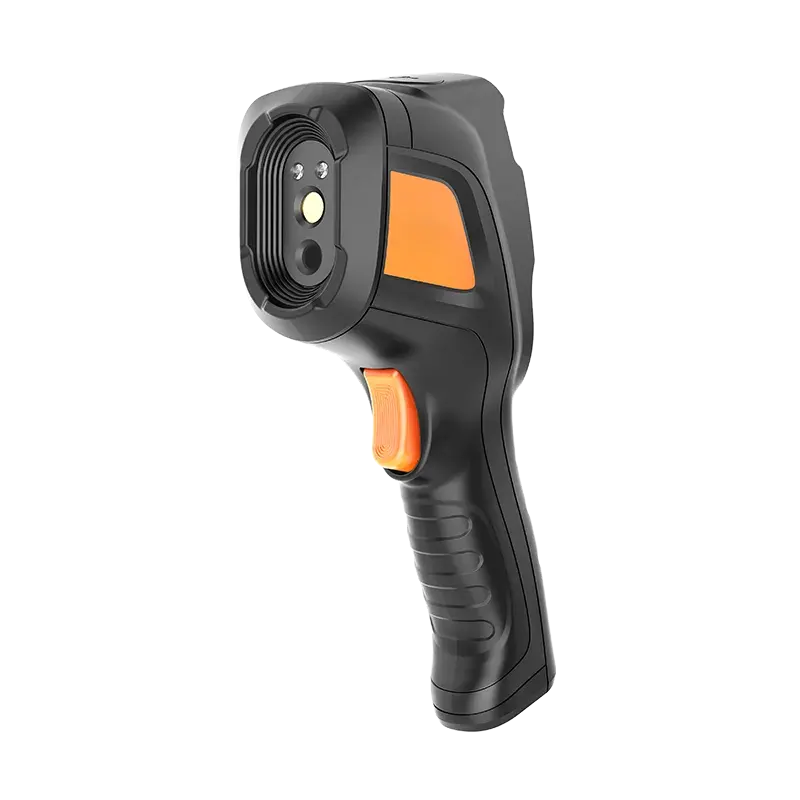

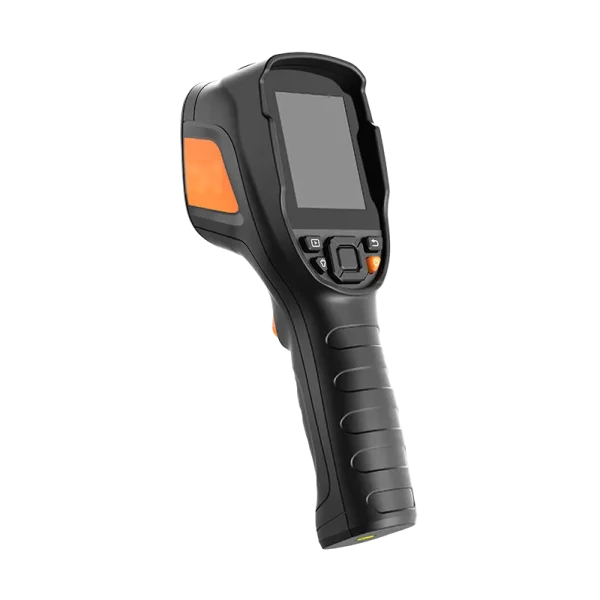

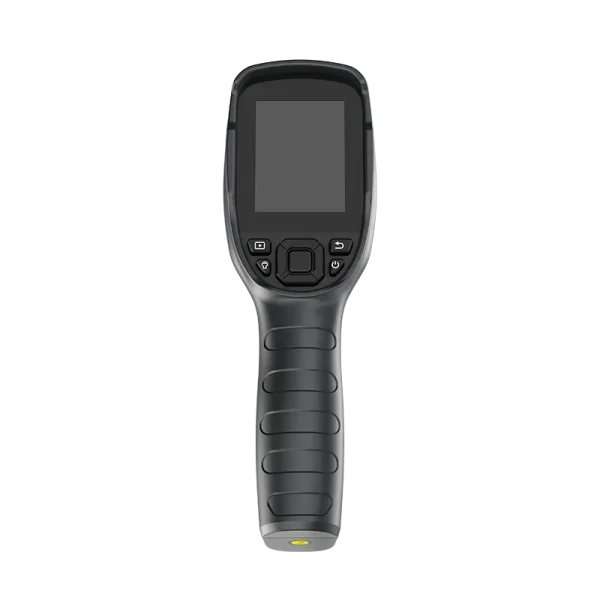

MF300 SE+ Handheld Thermal Camera Intelligent Image Algorithm Thermal Infrared Camera With Long Battery Life

Request Price PDF Download

Equipped with a high-sensitivity infrared detector with a resolution of 256×192.

Based on an intelligent image algorithm, the MF300 SE+ handheld thermal camera can generate clearer and sharper thermal images.

The product has been completely upgraded to give users a better experience.

Application :

Power Maintenance

Equipment Inspection

HVAC Leak Detection

Automotive Maintenance

Advantages

Resources

Technical Data

Advantages

Image+:distinguish smaller temperature differences and more details

Feature+:professional grade,fullservices based on thermal sensors, catering to all industrial control scenarios

Performance+:rugged,easy to use,and quick to deploy

Software+:complete software ecosystem

Resources

[download]
Technical Data

Thermal Imaging

Detector Type

Uncooled infrared detector

Infrared Resolution

256×192

Al Real-time Super-resolution

320×240

Pixel Size

12μm

Spectral Band

7.5-14μm

NETD

＜40mK (25°C,F1.0)

Frame Rate

25 Hz

Lens Focal Length

3.2mm

FOV

56°×42°

IFOV

3.8mrad

Focusing Mode

Fixed focus

Minimum Imaging Distance

0.3m

Measurement Range

-20°C ~ +150°C, 100°C ~ +550°C

Measurement Accuracy

±2°C or ±2% of readings, whichever is greater

Imaging Display

Display

2.8 inch, 320×240

Digital Zoom

1×, 2×, 4×

Palettes

4 options

Image Mode

Infrared

Temperature Width Stretch

Auto

Image Storage

Storage Medium

Standard 32GB MicroSD, up to 128G

Measurement and Analysis

Analysis Functions on the Device

Central temperature point/Highest temperature point/Lowest temperature point

Supporting Software

PC (Infrared Analysis Software)

System Functions

Alarm Type

Highest/Lowest temperature alarm in full frame; Image pop-ups, flash prompts; Auto image capture at alarm time (with temperature data).

Power Management

Auto shut-down setting

Others

Battery

Built-in rechargeable lithium-ion battery

Charging Mode

USB Type-C

Battery Life

About 15h

Interface

USB Type-C, SD card

Tripod Socket

UNC 1/4-20 interface for tripod

Operating Temperature

-10°C~+50°C

Operating Humidity

10%~95% (non-condensing)

Storage Temperature

-20°C~+60°C

Ingress Protection Rating

IP54

Shock and Vibration

Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)

Weight and Dimensions

About 520g, 237×75×92mm

Authentication

CE/RoHS/CMA, etc.

Packing List

Infrared camera×1, USB cable, 32GB SD card, user manual, storage bag, certificate of qualification, calibration certificate

Product Number

MCI030
