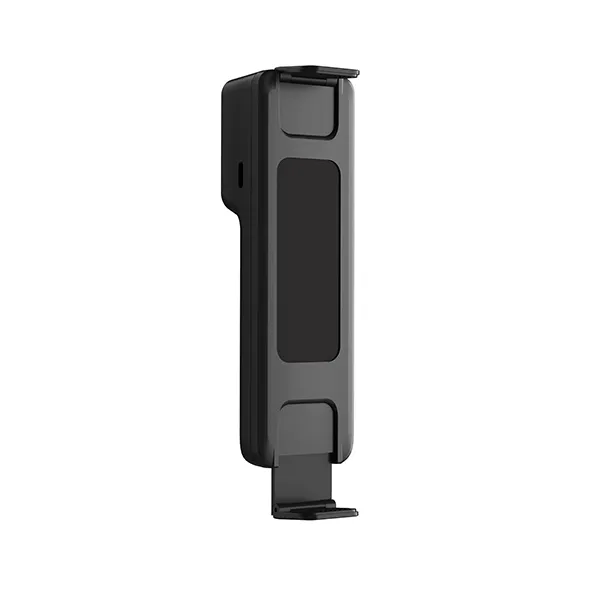

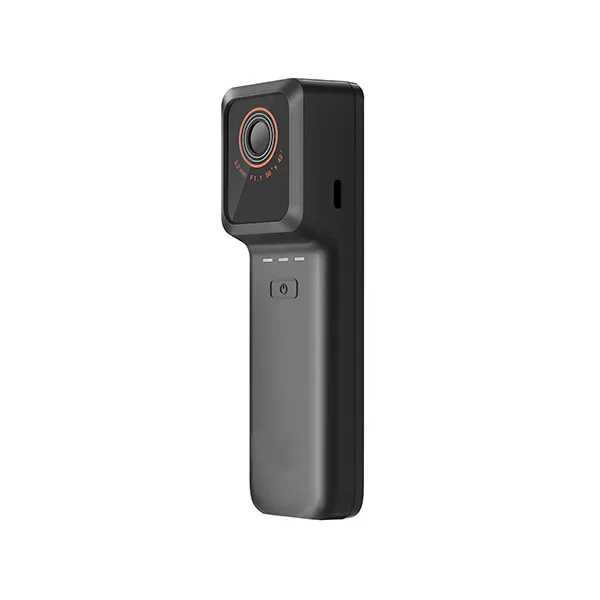

MC2 AIR Wireless Thermal Camera for Smart devices

Request Price PDF Download

Equipped with a high-sensitivity 256×192 resolution infrared detector, the MC2 AIR can be freely combined or separated with a smartphone according to the scenarios. It supports wireless image transmission and operation. With the supporting App for functions such as real-time analysis and transmission, the device can be widely used in electrical maintenance, equipment inspection, HVAC leak detection, and other fields.

4 / 1

Application :

Power Maintenance

Equipment Inspection

HVAC Leak Detection

Circuit Board Repairing

Advantages

Resources

Technical Data

Advantages

Wireless Measurement, Unlocking New Scenarios

Up to 8m wireless image transmission.

Image transmission delay < 300ms.

With 2 hours of battery life, productivity is always alive.

Clear Thermal Images, Precise Temperature Measurement

Built-in 12μm 256×192 infrared detector, featuring low power consumption and small size.

40mK professional-grade high thermal sensitivity, capturing smaller temperature differences; wider temperature measurement range of up to 550°C.

7 palettes, suitable for temperature observation of diﬀerent targets and different scenes.

Hard-core Conﬁguration, Easy to Use and Convenient

IP54 waterproof and dustproof, 2m drop protection, light and slim design that ﬁts your hand, weighing only 130g.

Faster Wi-Fi connection with the assistance of Bluetooth; OTA upgrade can be easily completed through the mobile app.

Professional app that supports full-scenario applications such as real-time analysis and offline analysis of temperature measurement images.

Resources

[download]

Technical Data

Thermal Imaging

Detector Type	12μm uncooled infrared detector
Infrared Resolution	256×192
Spectral Band	7.5-14μm
NETD	＜40mK (25°C,F1.0)
Frame Rate	25 Hz
Lens Focal Length	3.2mm
FOV	56°×42°
IFOV	3.75mrad
Focusing Mode	Fixed focus
Minimum Imaging Distance	0.3m
Measurement Range	-20°C ~ +150°C, 100°C ~ +400°C
Measurement Accuracy	±2ºC or ±2% of readings, whichever is greater

Imaging Display

Palettes	7 options
Image Mode	Infrared
Temperature Width Stretch	Auto

Measurement and Analysis

App Analysis Function

Central temperature point/Highest temperature point/Lowest temperature point, 1 preset analysis template

(support 3 custom points, 3 custom lines, and 3 custom frames)

System Functions

Communication Protocol	Wi-Fi, USB, Bluetooth
Remote Access and Control	WiFi, Type-C

Others

OTA	Support OTA upgrade
Battery	1050mAh
Charging Mode	USB Type-C
Battery Life	About 2h
Clamp Width	Minimum 131mm/Maximum 172mm
Tripod Socket	UNC 1/4-20 interface for tripod
Operating Temperature	-10°C~+50°C
Operating Humidity	10%~90% (non-condensing)
Storage Temperature	-20°C~+60°C
Ingress Protection Rating	IP54
Shock and Vibration	2G(EC60068-2-6)、25G(EC60068-2-29)
Weight and Dimensions	130g
Authentication	CE/RoHS/DGM/WEEE/Measure
Packing List	Data cable×1, complete machine×1, quick start guide×1, packing list×1, quality certifcate×1
Product Number	MCI029
