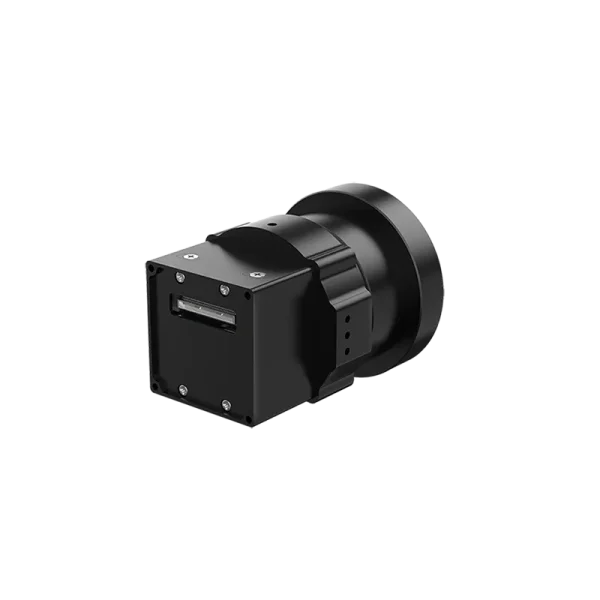

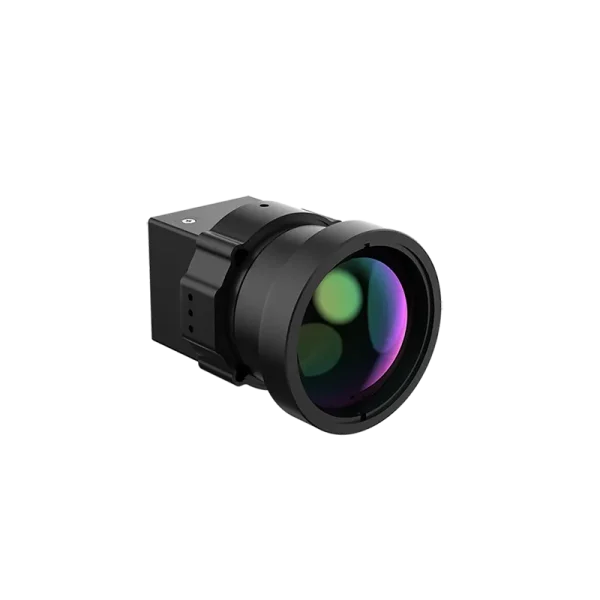

Turing MCI75 Uncooled Infrared Module (Temperature Measurement) 1280 HD Uncooled Thermal Module 24.5g Ultra-Light

Request Price PDF Download

The Turing MCI75 redefines the balance between power and portability.
It is a professional-grade uncooled module with a high-definition 1280 array.
The unit fits into an astonishingly small 29mm² frame.
This module weighs a mere 24.5g.
It leverages our latest self-developed detector technology.
This technology leads the market in miniaturization.
The MCI75 is backed by expert technical support.
It empowers developers to achieve high-resolution thermal vision without the bulk.
This makes it the premier choice for next-generation lightweight systems.

4 / 1

Application :

High-Precision Industrial Thermography

High-Definition Security & Intelligence

UAV & Unmanned Systems Payloads

Advanced Machine Vision & Automation

Advantages

Resources

Technical Data

Advantages

HD 1280-Series Industrial Solution

Featuring our proprietary 12μm VOx uncooled infrared detector, the MCI75 delivers a massive 1280×1024 resolution. This high-definition imaging power is packed into an ultra-miniature 29×29mm frame, weighing only 24.5g—setting a new benchmark for high-pixel density in compact modules.

Exceptional Imaging Performance

The combination of megapixel resolution and advanced proprietary algorithms ensures unparalleled thermal clarity. By highlighting the finest thermal nuances, it empowers users to identify targets and monitor critical details with high precision.

Versatile Configuration & Expert Support

We offer a comprehensive selection of optional lenses to ensure flexibility across diverse application scenarios. Our dedicated technical team provides professional guidance to help you select the optimal optical solution, ensuring an efficient and seamless integration process.

Resources

[download]

Technical Data

Performance Indicators

Detector Type	Uncooled VOx infrared detector
Resolution	1280×1024
Detector Frame Rate	30 Hz
Pixel Pitch	12μm
Spectral Band	8~14μm
NETD	≤50mK at 25℃,F#1.0

Image Adjustment

Brightness/Contrast Adjustment	Manual/Automatic/Linear
Polarity	Black-hot/White-hot
Palette	Support
Image Processing	TEC-less temperature control algorithm, digital filtering noise reduction, and digital detail enhancement.
Mirroring	Horizontal/Vertical/Diagonal

Power Supply

Power Supply Range (typical)	4.0~5.5VDC, 4.1~5.5V DC supported by user extension components.
Typical Power Consumption at 25°C Without Extension	1w/0.9W (Typical, @25°C，without extension)

Interface

Digital Video	14Bit or 8Bit LVCMOS/MIPI, CDS2/BT1120
Extension Components	USB3.0
Control Interface	UART（3.3V）

Temperature Measurement Performance

Measurement Range	Temperature measurement series: -20°C~+150°C, 100℃~+650°C
Measurement Accuracy	@Ambient temperature of 15°C~35°C, Temperature measurement series: ±2°C or ±2% of reading (The greater shall prevail)
Measurement Tool	Secondary analysis of points, lines, and areas

Physical Characteristics

Dimensions (Without lens and extension components)	29mm × 29 mm × 18.9mm
Weight (3.2mm, without extension components)	24.5g
Lens Model	10mm,35mm,50mm/ 10mm,35mm,50mm,75mm

Environment Adaptability

Operating Temperature	-20°C~+60°C measurement/-40℃~+70℃
Storage Temperature	-45℃～+85℃
Humidity	5~95%, non-condensing
Product Certification	RoHS2.0
Product Number	MCI075
