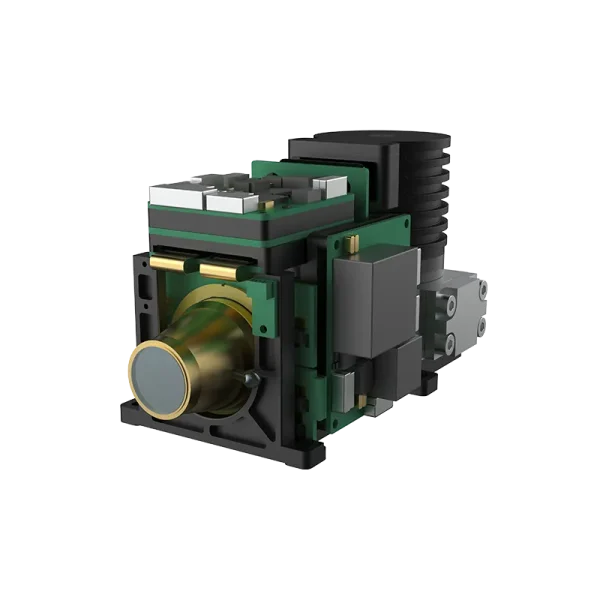

Photon MCI77 Medium-Wave Cooled Infrared Module High-Speed Capture Infrared Camera

Request Price PDF Download

The Photon MCI77 uses a high-performance HgCdTe cooled FPA detector.
Proprietary image processing technology sets a new standard for infrared imaging.
This system delivers a high frame rate of 100Hz.An ultra-low NETD of 15mK captures the finest thermal details.
It provides clear thermal imaging even for objects in motion.The versatile design supports diverse digital interfaces and zoom optics.
This is the premier choice for long-range observation systems.
It is specifically designed for dynamic payload systems.
The included intuitive SDK empowers developers to work faster.This toolkit accelerates time-to-market while reducing integration costs.

4 / 1

Application :

Perimeter Security & Intrusion Detection

Wildlife Observation & Habitat Monitoring

Handheld Thermal Imagers & Portable Devices

Enhanced Vision Systems (EVS)

Advantages

Resources

Technical Data

Advantages

Ultra-Sensitive Imaging for Superior Detail

With an exceptional NETD ≤15mK, the MCI77 captures the finest thermal nuances, ensuring reliable detection and identification of minute targets at extended ranges.

Proprietary Algorithms for Intelligent Optimization

Powered by our latest self-developed image processing engine, the module features Wide Dynamic Range (WDR) and Adaptive Integration Time. This ensures optimal image clarity and contrast across diverse and challenging environments.

High-Speed Capture for Dynamic Precision

Combining 640×512 resolution with a high-speed 100Hz frame rate, the system excels in tracking fast-moving targets and maintaining seamless situational awareness during wide-area surveillance.

Resources

[download]

Technical Data

Performance Indicators

Detector Type	HgCdTe cooled infrared detector
Resolution	640×512
Frame Rate	100 Hz/50 Hz/30 Hz
F#	F2.0/F4.0
Pixel Pitch	15μm
Spectral Band	3.7±0.2μm～4.8±0.2μm
NETD	≤15mK@25℃
Detector Defective Pixel Rate	≤0.5%
Cooling Time@25°C	≤7min

Image Adjustment

Brightness/Contrast Adjustment	Manual/Auto
Polarity	Black-hot/White-hot (white-hot by default)
Reticle	Display/Blank/Move
Digital Zoom	1.0~8.0 continuous zoom (step size:0.1)
Image Processing	Non-uniformity correction, digital filter noise reduction, digital detail enhancement
Mirroring	Horizontal/Vertical/Diagonal

Power Supply

Power Supply Range	27~36V DC (with isolation), typical voltage of 28V DC
Power Consumption (Typical, @25°C)	Steady status ≤16W, peak ≤35W

Interface

Analog Video	PAL
Digital Video	Cameralink/SDI
Serial Communication Interface	RS422(default baud rate: 115200)

Physical Characteristics

Dimensions (Without lens)	≤ 870g (with isolation)
Weight (Without lens)	144×75×81mm (±1) (with isolation)

Environment Adaptability

Operating Temperature	-40℃～+60℃
Storage Temperature	-45℃～+65℃
Temperature Shock	-45℃~+65℃（≤5℃/min）
Random Vibration	4.2g
Shock	Final peak sawtooth wave, 40g, 11ms (18 times in three axes and six directions in total)
MTTF	≥8000h
Storage Life	10 years
Product Number	MCI077
