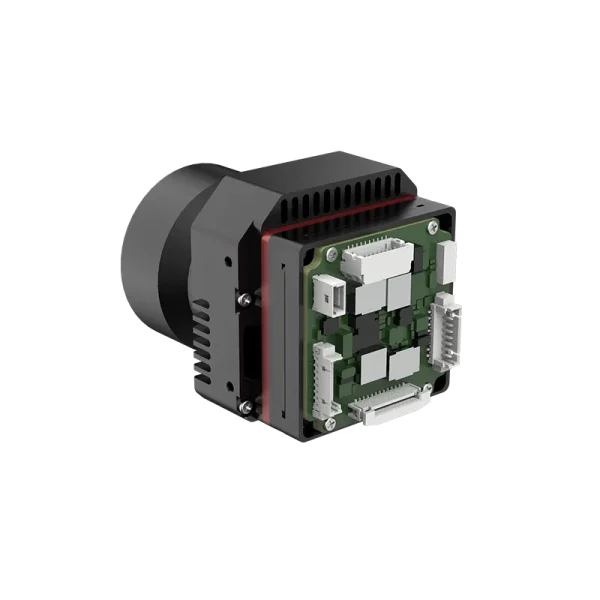

Turing MCI65 Uncooled Infrared Module High-Precision Measurement Stable Precise Imaging Module

Request Price PDF Download

The Turing MCI65 uncooled infrared thermal module integrates a high‑sensitivity VOx infrared detector.

It featuring stable high‑performance core, advanced imaging algorithms, and high‑precision temperature measurement algorithms.

It is widely used in security monitoring, industrial temperature measurement, forest fire prevention, rail transit inspection and other professional scenarios.

Application :

Railway Inspection

Fire Rescue

Industrial Temperature Measurement

Security Monitoring

Advantages

Resources

Technical Data

Advantages
All Scenario and All Application

All-scenario accurate temperature measurement across a FOV ranging from 15° to 100° .

It supports both digital and network applications for all scenarios.



Stable, Precise, and Accurate

The module upgrades the image algorithm to the new generation and optimizes the image for special

scenarios such as forests, sea, sky, and rainy and foggy weather, providing customers with clear and sharp infrared images.

It can output a full array of temperature data to facilitate secondary temperature analysis.



Multiple Video Interfaces, Easy for Secondary Development

It provides various video output interface options including interfaces, BT.601, and BT.1121, with extensions for SDI, USB, Cameralink, and HDMI interfaces.

It provides multiple SDK, which are simple and easy to use, shortening the development cycle, improving efficiency, and reducing secondary development costs.

Resources

[download]
Technical Data

Performance Indicators

Detector Type

Uncooled VOx infrared detector

Resolution

640×512

Detector Frame Rate

25 Hz

Pixel Pitch

12μm

Spectral Band

8~14μm

NETD

≤40mK at 25℃,F#1.0





Image Adjustment

Palette

Support (20 types)

Digital Zoom

1.0~8.0× continuous zoom (step size: 0.1)

Image Processing

Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement/Style adjustment

Mirroring

Horizontal/Vertical/Diagonal





Network Function

Network Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols.

Platform Access

Support Modbus TCP, MQTT protocols, ONVIF, GB28181, and SDK

Simultaneous Previewed Videos

Up to 8 channels

User Management

Up to 20 users, 3 levels: administrator, operator and user

Browser

Google, Firefox, Edge, etc.





Intelligent Functions

Intelligent Video

Support

Intelligent Alarm

Support abnormality detection and linkage alarm for network cable disconnection, IP address conflict, memory error, and illegal access

Intelligent Detection

Supports intelligent analysis of events such as regional intrusion, tripwire intrusions and passenger and vehicle recognition.

Alarm Linkage

Video taking/Image capture (thermal image capture supported)/Email/Linked PTZ/Alarm output





Lens

Lens Type

Athermalized/Prime electric focus

Focus Mode

Manual/Automatic

Electric Focusing

Support

Electric Zooming

/





Digital

Power Supply Range

5-24V DC (Recommended voltage of 12V DC)

Typical Power Consumption at 25°C

＜1.5w

Digital Video

LVCMOS/BT.601/BT.1120

Communication Interface

RS-232/UART





Network Type

Power Supply Range

12V DC ±10%

Typical Power Consumption at 25°C

＜2.4w (Typical, @25°C)

Communication Interface

One RJ45 10M/100M adaptive Ethernet port, one RS-485, one UART

Alarm Interface

1-channel alarm input, 1-channel alarm output

Audio Interface

1-channel audio input, 1-channel audio output





Interface

Analog Video

1-channel PAL system





Environment Adaptability

Operating Temperature

-40℃～+70℃

Storage Temperature

-45℃～+85℃

Humidity

5-95%, non-condensing

Product Certification

RoHS2.0





PTZ Function

Fire Warning

Supports fire point detection.





Thermal Imaging

Measurement Range

-20℃~﹢150℃, 0℃~﹢650℃

Measurement Accuracy

±2°C or 2% (The greater shall prevail)@ambient temperature -20°C ~ +60°C





Others

Product Number

MCI065
