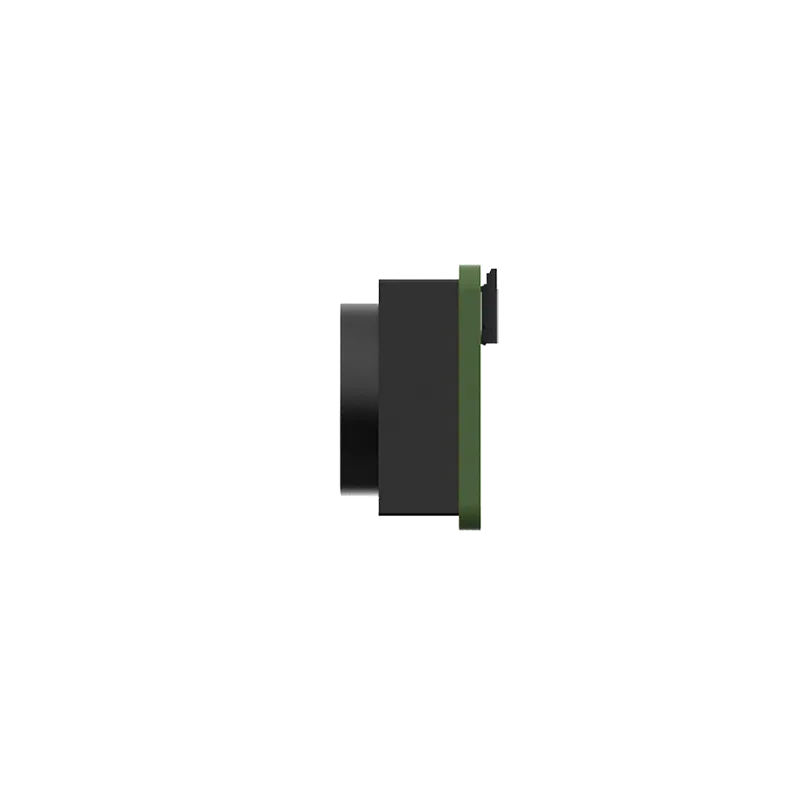

Turing MCI60 Uncooled Infrared Module 256×192 WLP Detector

Request Price PDF Download

The Turing MCI60 uncooled module features an advanced 256×192 wafer-level detector. Its compact, lightweight structure and ultra-low power consumption meet stringent SWaP³ requirements. The split-type assembly delivers exceptional flexibility for diversified integration. Supported by auxiliary development tools, it is compatible with multiple ARM-based SOC platforms. This ensures high usability and easy system integration for developers. The module outputs infrared images and real-time temperature data simultaneously. It is paired with lightweight lenses and various extension components. This optimal low-cost solution is widely applied in industry and electric power. It also supports security surveillance and machine vision fields effectively.

4 / 1

Application :

Measurement Tools

Security Monitoring

Smart Home

UAV Payload

Cost-Effective Compact Solution

Adopts 256×192 WLP detector; weighs only 3.5g with 3.2mm lens.

Supports multiple ARM-based SOC platforms with direct sensor data processing capability.

Easy Integration & Development

Compatible with various mainstream embedded SOC platforms and supports ISP image optimization.

Provides rich SDK interfaces for efficient and rapid secondary development.

Flexible Configuration & Wide Compatibility

Adjustable field of view ranging from 20° to 90°.

Supports multiple extensions including DVP, MIPI and analog video.

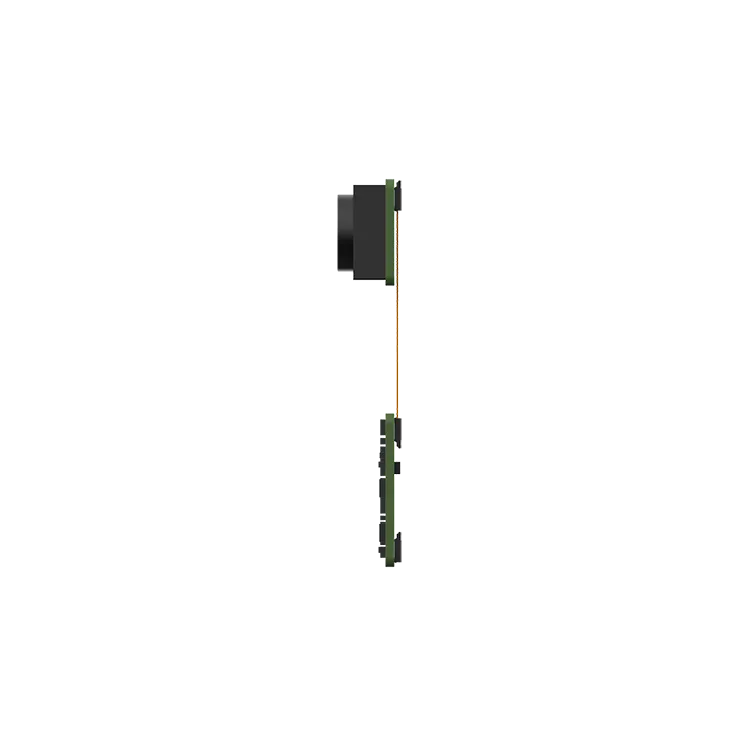

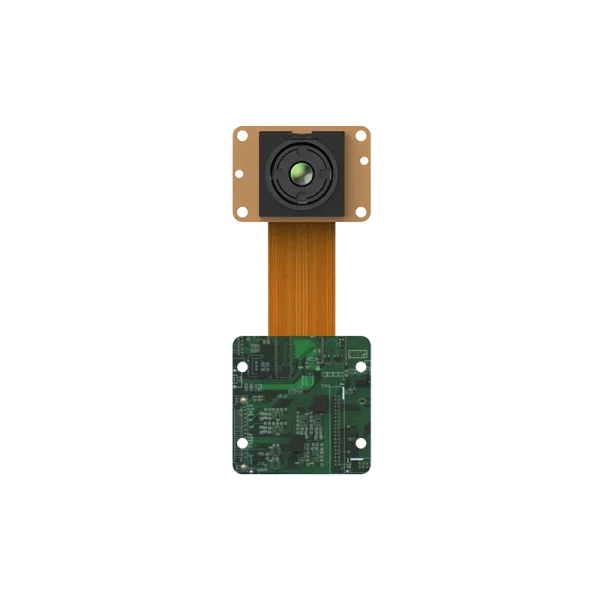

Split-type design simplifies integration and development, ideal for consumer, intelligent, security and industrial applications.

Resources

[download]

Technical Data

Performance Indicators

Detector Type	Uncooled VOx infrared detector
Resolution	256×192
Detector Frame Rate	25 Hz
Pixel Pitch	12μm
Spectral Band	8~14μm
NETD	≤50mK at 25°C (≤40mK, optional)

Image Adjustment

Brightness/Contrast Adjustment	Manual/Auto
Polarity	Black-hot/White-hot
Palette	Multiple types support
Reticle	Display/Blank/Move
Image Processing	Digital filtering noise reduction, and digital detail enhancement
Mirroring	Horizontal/Vertical/Diagonal

Power Supply

Power Supply Range (typical)	3.8V~5.2V
Typical Power Consumption at 25°C Without Extension	≤0.35W

Interface

Digital Video	CDS2/CDS3/LVCMOS
Serial Communication Interface	UART
Extension Components	Analog Video

Interface/Supporting

Direct Drive Solution

Compatible with SOC platforms such as HIS13516, HIS13519, NT98528, AR9201, AR9341, and CV28M33

Temperature Measurement Performance

Measurement Range	Temperature measurement series: -20℃～+550℃
Measurement Accuracy	For measurement series, ±3°C or ±3% of reading (The greater shall prevail) @Ambient temperature of -20°C~+60°C

Physical Characteristics

Dimensions (Without lens and extension components)	21×14.6mm
Weight (3.2mm, without extension components)	≤3.5g
Lens Model	2mm, 3.2mm, 7mm, 10mm, 13mm

Environment Adaptability

Operating Temperature	-20℃～60℃
Storage Temperature	-45℃～+85℃
Humidity	5 ~ 95%, non-condensing
Product Certification	RoHS
Product Number	MCI060
