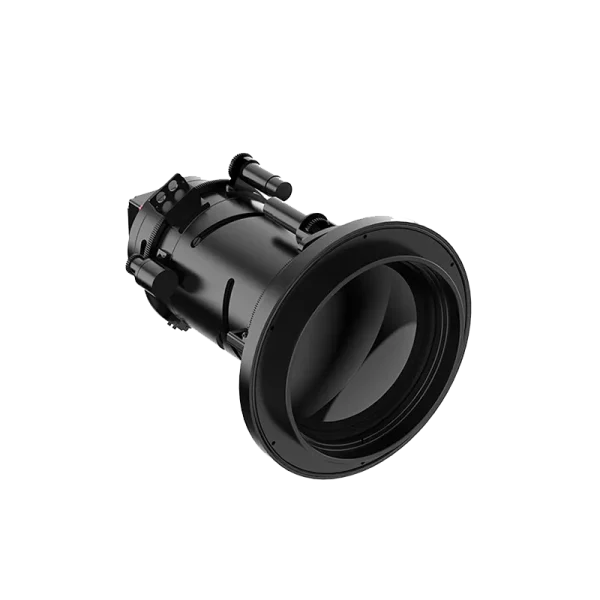

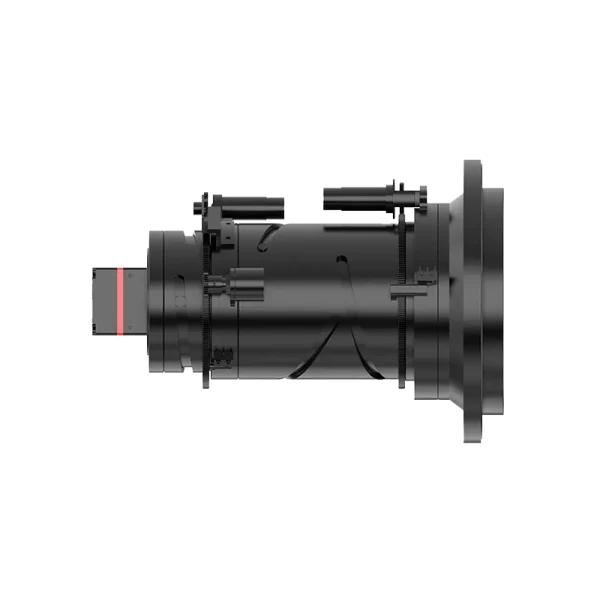

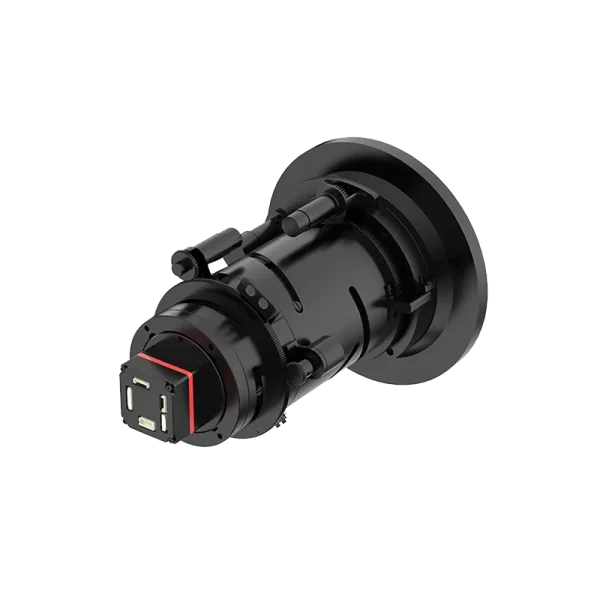

Turing MCI66 Uncooled Infrared Module Clear And Sharp Infrared Imagery

Request Price PDF Download

The Turing MCI66 uncooled infrared module integrates a high-sensitivity VOX infrared detector, delivering stable high-performance imaging, advanced image algorithms and precise lens control technology to redefine long-distance monitoring. It is widely applied to perimeter security, high-altitude observation, forest fire prevention, water area monitoring and industrial temperature measurement.

Application :

Perimeter Monitoring

Forest Fire Prevention

Industrial Temperature Measurement

Security Monitoring

Advantages

Resources

Technical Data

Advantages
Powerful Detector Performance

Built-in high-sensitivity VOX infrared detector with stable core performance and professional lens control, enabling outstanding long-distance monitoring.

Adaptable to perimeter security, high-altitude observation, forest fire prevention, water area monitoring and industrial temperature measurement.

Upgraded Image Algorithm

New-generation optimized image algorithm for complex scenarios including forest, sea, sky, rain and fog, delivering clear and sharp infrared imagery.

Optimized Lens Solution

Supports athermalized fixed lenses, fixed electric focus lenses and continuous zoom lenses.

Realizes electric focus, continuous zoom, auto-focus and defocus compensation.

Rich & Extensible Interfaces

Multiple video output interfaces: BT.601, BT.1120 and more.

Extensible to SDI, USB, Camera Link and HDMI interfaces.

Equipped with user-friendly SDK to shorten development cycle, improve efficiency and lower secondary development costs.

Resources

[download]
Technical Data

Performance Indicators

Detector Type

Uncooled VOx infrared detector

Resolution

1024×768

Detector Frame Rate

30 Hz

Pixel Pitch

12μm

Spectral Band

8~14μm

NETD

≤50mK at 25℃,F#1.0



Image Adjustment

Palette

Support (20 types)

Digital Zoom

1.0~4.0× continuous zoom (step size: 0.1)

Brightness/Contrast Adjustment

Manual/Auto 0/Auto 1

Image Processing

Non-uniformity correction/digital filter noise reduction/digital detail enhancement

Mirroring

Horizontal/Vertical/Diagonal



Network Function

Network Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols.

Platform Access

ONVIF, GB28181, SDK

Simultaneous Previewed Videos

Up to 20 channels

User Management

Up to 20 users, 3 levels: administrator, operator and user

Browser

Support IE8+ and various languages



Intelligent Functions

Fire Point Detection

Support

Intelligent Video

Support

Intelligent Alarm

Abnormality detection for network cable failure, IP address conflict, full memory, memory error and illegal access, and linkage alarm

Intelligent Detection

Tripwire and regional intrusion detections, and other intelligent video analysis functions

Alarm Linkage

Video taking/image capture/Email/linked PTZ/alarm output



Lens

Lens Type

Athermalized/Motorized fixed-focus /Continuous zoom

Focus Mode

Manual/Automatic

Electric Focusing

Support

Electric Zooming

Support



Digital

Power Supply Range

5-24V DC (Recommended voltage of 12V DC)

Typical Power Consumption at 25°C

＜2.4W

Digital Video

LVCMOS/LVDS/BT.1120/SDI

Communication Interface

RS-232/RS-485

Weight

102.7g (without lens)

Size

45mm×45mm



Network Type

Power Supply Range

9-15V DC (Recommended voltage of 12V DC)

Typical Power Consumption at 25°C

＜3.0W

Communication Interface

One RJ45 10M/100M adaptive Ethernet port, one RS-485

Alarm Interface

One alarm input, one alarm output

Audio Interface

One audio input, one audio output

Weight

180.9g (without lens)

Size

45mm×45mm



Environment Adaptability

Operating Temperature

-40℃～+60℃

Storage Temperature

-45℃～+85℃

Humidity

5 ~ 95%, non-condensing

Product Certification

RoSH2.0



Others

Product Number

-40℃～+60℃
