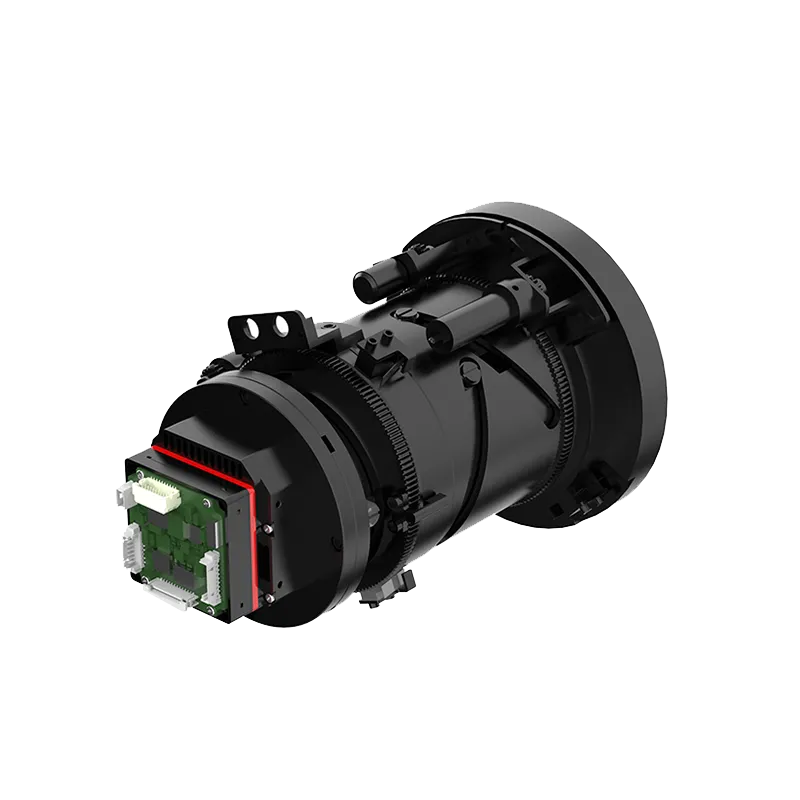

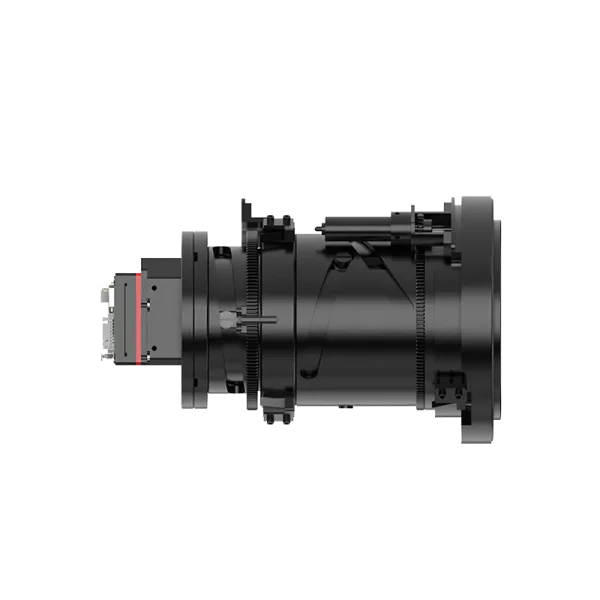

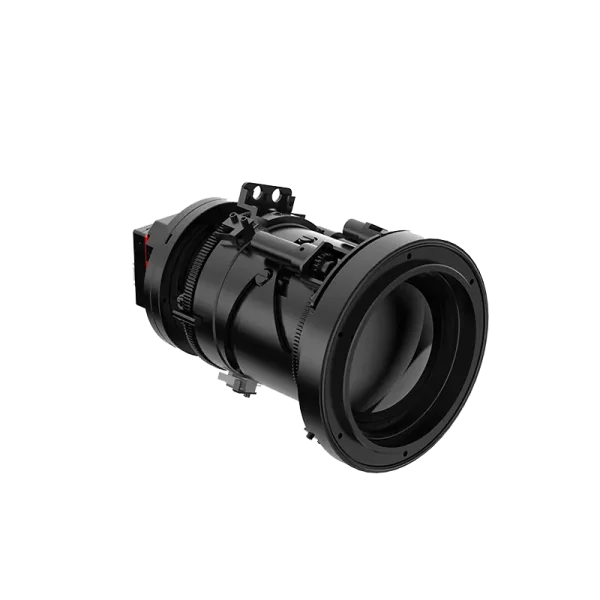

Turing MCI64 Uncooled Infrared Module (Imaging) Supports Multi Type Athermalized Lenses

Request Price PDF Download

The Turing MCI64 uncooled infrared module is equipped with a high‑sensitivity VOx infrared detector, delivering stable high-performance core processing, advanced imaging algorithms and professional lens control technology to bring an upgraded experience for long‑distance monitoring.

It is widely used in perimeter security, high‑altitude observation, forest fire prevention, water area monitoring and other professional scenarios.

Application :

Perimeter Monitoring

Forest Fire Prevention

Urban High-Altitude Observation

Security Monitoring

Advantages

Resources

Technical Data

Advantages
All-Weather & All-Scenario Ultra-Fast Focusing

Optimized lens control technology and matched continuous zoom lenses realize full‑range focusing in all temperature environments.

Deeply optimized auto‑focus algorithm enables ultra‑fast focusing within 1 second, significantly improving focus speed for both general and weak‑contrast targets.

Stable and clear imaging during target tracking and linkage magnification.

Sharp & Clear Infrared Imaging

Upgraded new‑generation image algorithm optimized for complex scenarios including forests, sea, sky, rain and fog, providing sharp and high‑definition infrared images.

Professional & Optimized Lens Solution

Supports athermalized fixed lenses, fixed electric focusing lenses and continuous zoom lenses.

Realizes electric focusing, continuous zoom, auto‑focus and defocus compensation functions.

Rich Interfaces & Easy Secondary Development

Standard video output interfaces including BT.601, BT.1120 and more.

Extensible to SDI, USB, Camera Link and HDMI interfaces.

Equipped with easy‑to‑use SDKs to shorten development cycle, improve integration efficiency and reduce secondary development costs.

Resources

[download]
Technical Data

Performance Indicators

Detector Type

Uncooled VOx infrared detector

Resolution

640×512

Detector Frame Rate

25 Hz

Pixel Pitch

12μm

Spectral Band

8~14μm

NETD

≤40mK at 25℃,F#1.0



Image Adjustment

Palette

Support (20 types)

Digital Zoom

1.0~8.0× continuous zoom (step size: 0.1)

Image Processing

Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement/Style adjustment

Mirroring

Horizontal/Vertical/Diagonal



Network Function

Network Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols.

Platform Access

Modbus TCP, MQTT protocols, ONVIF, GB28181, and SDK.

Simultaneous Previewed Videos

Up to 8 channels

User Management

Up to 20 users, 3 levels: administrator, operator and user

Browser

Google, Firefox, Edge, etc.



Intelligent Functions

Intelligent Video

Support

Intelligent Alarm

Detects abnormalities, including network cable disconnections, IP address conflicts, memory errors, unauthorized access, and burn warnings, and triggers an alarm in response.

Intelligent Detection

Supports intelligent analysis of events such as regional intrusion, tripwire intrusions and passenger and vehicle recognition.

Alarm Linkage

Video taking/Image capture (thermal image capture supported)/Email/Linked PTZ/Alarm output



Lens

Lens Type

Athermalized/Motorized fixed-focus /Continuous zoom

Focus Mode

Manual/Automatic

Electric Focusing

Support

Electric Zooming

Support



Digital

Power Supply Range

5-24V DC (Recommended voltage of 12V DC)

Typical Power Consumption at 25°C

＜1.5w

Digital Video

LVCMOS/BT.601/BT.1120

Communication Interface

RS-232/UART



Network Type

Power Supply Range

9-15V DC (Recommended voltage of 12V DC)

Typical Power Consumption at 25°C

＜2.0w

Communication Interface

One RJ45 10M/100M adaptive Ethernet port, one RS-485, one UART

Alarm Interface

One alarm input, one alarm output

Audio Interface

One audio input, one audio output



Interface

Analog Video

1-channel PAL system



Environment Adaptability

Operating Temperature

-40℃～+70℃

Storage Temperature

-45℃～+85℃

Humidity

5-95%, non-condensing

Product Certification

RoHS2.0



PTZ Function

Fire Warning

Supports fire point detection.



Thermal Imaging

Measurement Range

-20℃~﹢150℃, 0℃~﹢650℃

Measurement Accuracy

±2°C or 2% (The greater shall prevail)@ambient temperature -20°C ~ +60°C



Others

Product Number

MCI064
