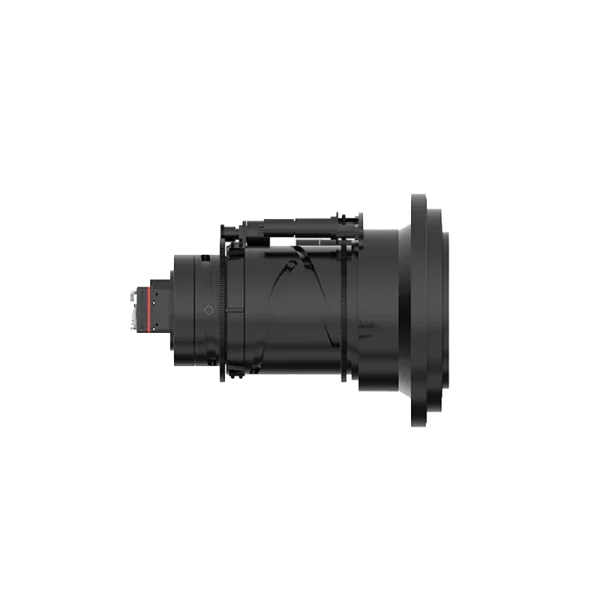

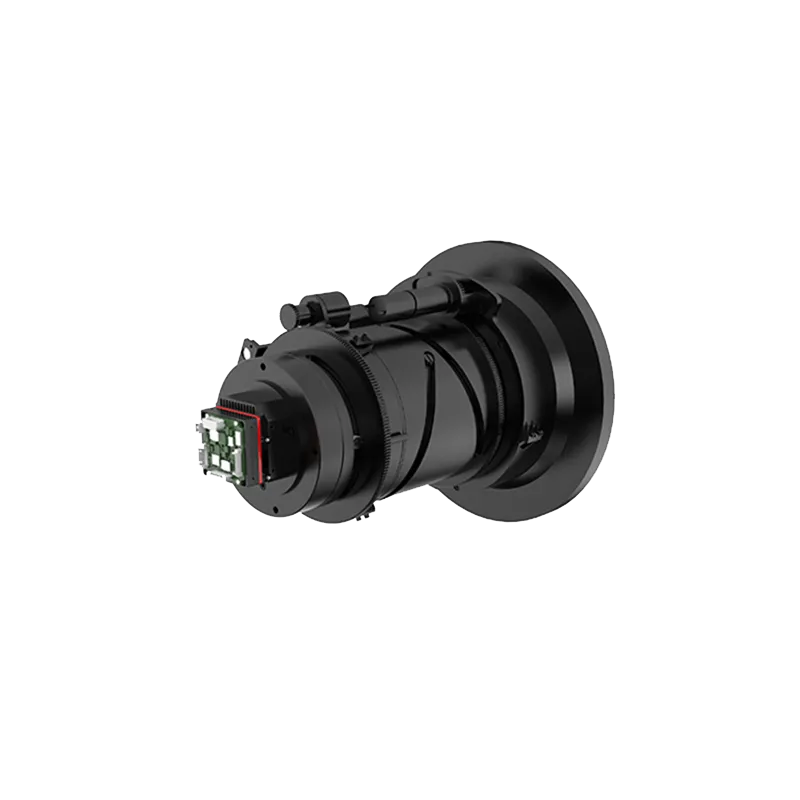

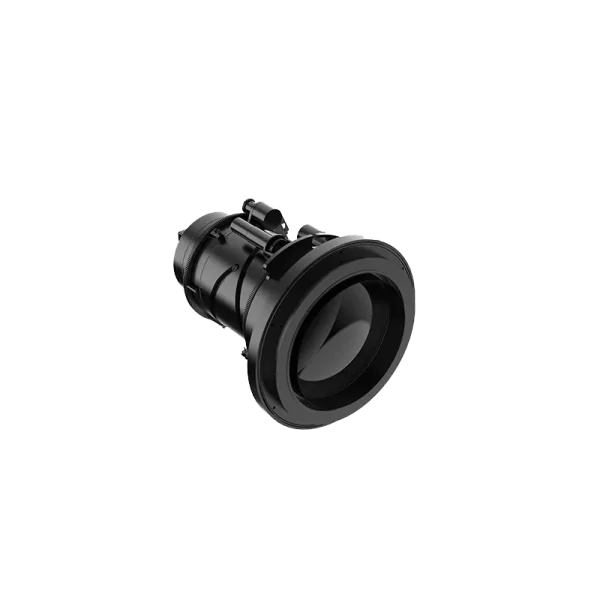

Turing MCI62 Uncooled Infrared Module (Imaging) Thermal Camera

Request Price PDF Download

The Turing F384 uncooled infrared module integrates a high-sensitivity VOx infrared detector, delivering stable high-performance core processing, advanced imaging algorithms and professional lens control technology, bringing an upgraded experience for long-distance monitoring. It is widely used in perimeter security, high-altitude observation, forest fire prevention, water area monitoring and other professional scenarios.

Application :

Perimeter Security Monitoring

Forest Fire Detection & Prevention

Urban High-Altitude Surveillance & Observation

Professional Security Surveillance

Advantages

Resources

Technical Data

Advantages
All-Weather & All-Scenario Ultra-Fast Focusing

Optimized lens control technology and dedicated continuous zoom lenses enable full-range focusing in all temperature environments.

Deeply optimized auto-focus algorithm realizes ultra-fast focusing within 1 second for both general and weak targets.

Maintains clear and stable imaging during target tracking and linkage magnification.

Sharp & Clear Infrared Imaging

Upgraded new-generation image algorithm optimized for complex scenarios including forests, sea, sky, rain and fog, providing customers with sharp, high-definition infrared images.

Professional Optimized Lens Solution

Supports athermalized fixed lenses, fixed electric focusing lenses and continuous zoom lenses.

Implements electric focus, continuous zoom, auto-focus and defocus compensation functions.

Rich Interfaces & Easy Secondary Development

Standard video output interfaces including BT.601, BT.1120 and more.

Extensible to SDI, USB, Camera Link and HDMI interfaces.

Equipped with user-friendly SDKs to shorten development cycle, improve integration efficiency and reduce secondary development costs.

Resources

[download]
Technical Data

Electrical Characteristics

Power Consumption

＜1.5w (Typical, at25°C)



Performance Indicators

Detector Type

Uncooled VOx infrared detector

Resolution

384×288

Detector Frame Rate

50 Hz

Pixel Pitch

12μm

Spectral Band

8~14μm

NETD

≤40mK at 25℃, F#1.0



Image Adjustment

Palette

Support (20 types)

Digital Zoom

1.0~8.0× continuous zoom (step size: 0.1)

Image Processing

Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement/Style adjustment

Mirroring

Horizontal/Vertical/Diagonal



Network Function

Network Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols.

Platform Access

Modbus TCP, MQTT protocols, ONVIF, GB28181, and SDK.

Simultaneous Previewed Videos

Up to 8 channels

User Management

Up to 20 users, 3 levels: administrator, operator and user

Browser

Google, Firefox, Edge, etc.



Intelligent Functions

Intelligent Video

Support

Intelligent Alarm

Support abnormality detection and linkage alarm for network cable disconnection, IP address conflict, memory error, and illegal access

Intelligent Detection

Supports intelligent analysis of events such as regional intrusion, tripwire intrusions and passenger and vehicle recognition.

Alarm Linkage

Video taking/Image capture (thermal image capture supported)/Email/Linked PTZ/Alarm output



Lens

Lens Type

Athermalized/Prime electric focus/Continuous zoom

Focus Mode

Manual/Automatic

Electric Focusing

Support

Electric Zooming

Support



Digital

Power Supply Range

5-24V DC (Recommended voltage of 12V DC)

Digital Video

LVCMOS/BT.601/BT.1120

Communication Interface

RS-232/UART



Network Type

Power Supply Range

12V DC ±10%

Communication Interface

One RJ45 10M/100M adaptive Ethernet port, one RS-485, one UART

Alarm Interface

1-channel alarm input, 1-channel alarm output



Interface

Analog Video

1-channel PAL system



Environment Adaptability

Operating Temperature

-40℃～+70℃

Humidity

5-95%, non-condensing

Product Certification

RoHS2.0



PTZ Function

Fire Warning

Supports fire point detection.



System Interface

Audio Interface

1-channel audio input, 1-channel audio output



Thermal Imaging

Measurement Range

Not support

Measurement Accuracy

Not support



Others

Storage Temperature

-45℃～+85℃

PRODUCT NUMBER

MCI062
