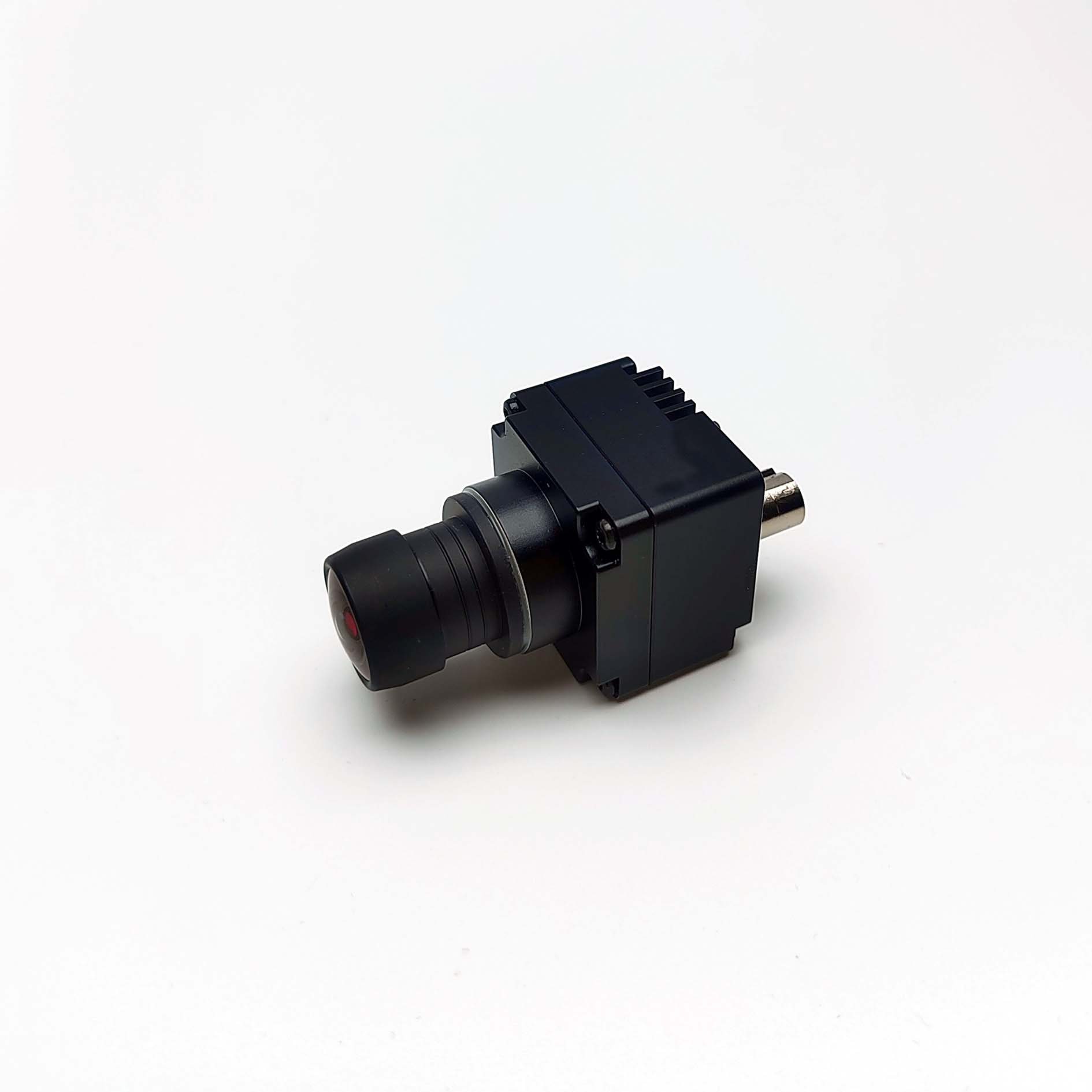

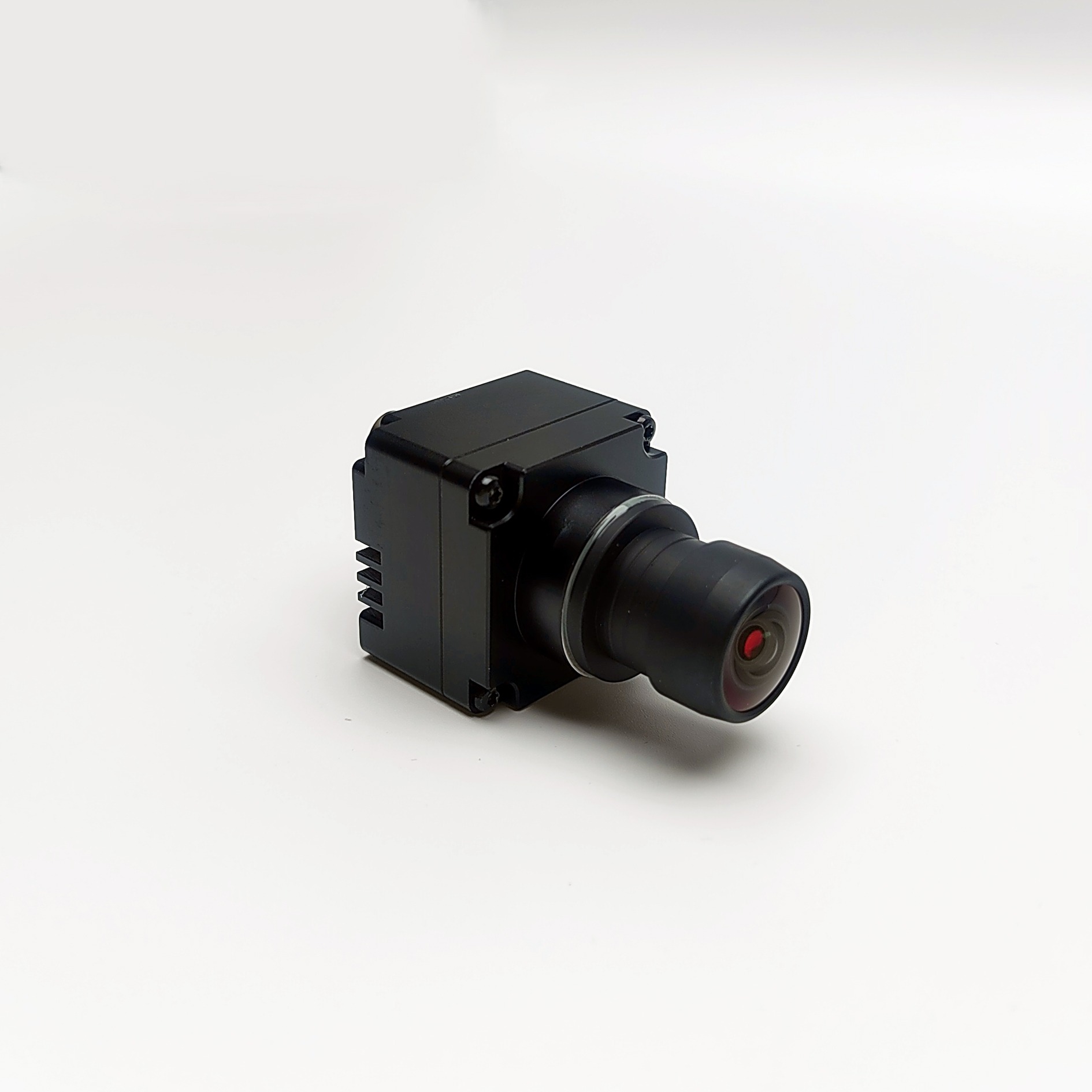

MCI004 8MP GMSL2 CAMERA
MCI004 camera module is equipped with ONSEMI Semiconductor CMOS image sensor AR0820 and Maxim GMSL2.It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality,which comes with an IP67-rated enclosure – is supplied with an AA lens that is focused and glued in our factory.
Application :
-
Automotive
-
ADAS + Viewing Fusion
-
High Dynamic Range Imaging
-
Autonomous Driving
-
Robots
Advantages
-
Output format: Uncompressed YUV422 format
-
S-mount IP67 compliant lens focused and glued at our factory
-
Multi−Camera synchronization Support
-
Support different focal length lens
-
FCC , CE and RoHS
Resources
Technical Data
| Sensor | ONSEMI 8.3MP AR0820 RGGB |
| ISP | GW5300 |
| Image Size | 1/2 inch CMOS |
| Output Pixels | 3840H*2160V |
| Pixel Size | 2.1um*2.1um |
| Frame Rate | 3840*2160@30fps |
| HDR Support | Yes |
| LFM | / |
| Output data | YUV422@8bit |
| Serializer | MAXIM MAX9295A |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V POC |
| Current | <400mA@12VDC |
| Connector | Amphenol Fakra(Z Code) |
| Operating temp.
range |
-40~+85℃ |
| Dimensions | W:30mm,L:30mm,H:22.57mm |
| Weight | <80g |
| Product Number | MCI004 |
