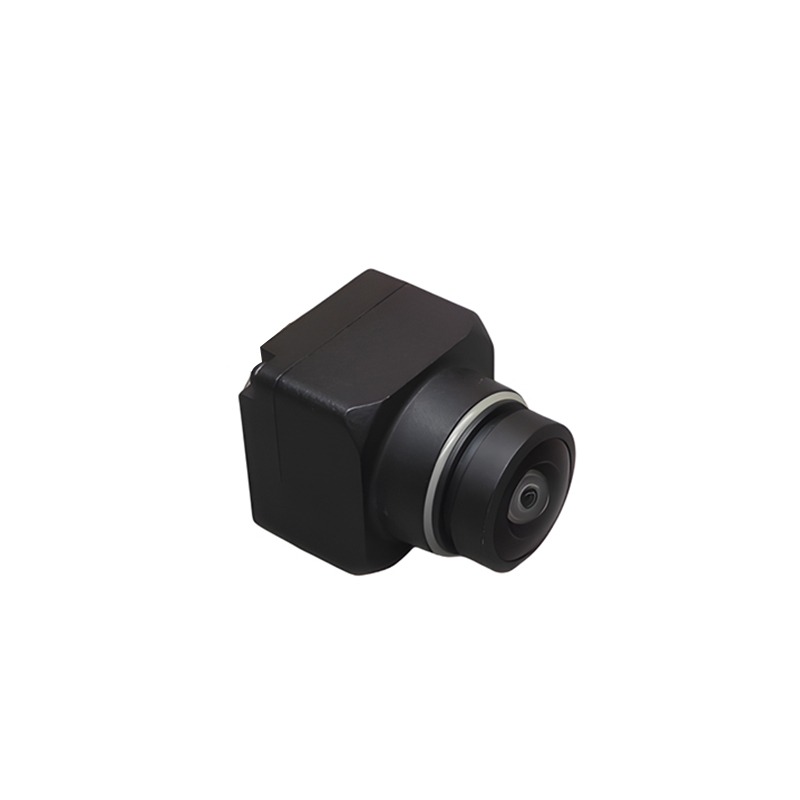

MCI002 3MP GMSL2 CAMERA
MCI002 is equipped with SONY CMOS image sensor ISX031 and Maxim GMSL2 serializer MAX96717F. It has an automotive-grade sensor with a well tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure–is supplied with an AA lens that is focused and glued in our factory.
Application :
-
Automotive
-
ADAS + Viewing Fusion
-
High Dynamic Range Imaging
-
Autonomous Driving
-
Robots
Advantages
-
Output format: Uncompressed YUV422 format
-
S-mount IP67 compliant lens focused and glued at our factory
-
Multi−Camera synchronization Support
-
Support different focal length lens
-
FCC , CE and RoHS
Resources
Technical Data
| Sensor | SONY 2.95MP ISX031 RGGB |
| ISP | Built-in |
| Image Size | 1/2.42 inch CMOS |
| Output Pixels | 1920H*1536V |
| Pixel Size | 3.0um*3.0um |
| Frame Rate | 1920*1536@30fps |
| HDR Support | Yes |
| LFM | Yes |
| Output data | YUV422@8bit |
| Serializer | MAXIM MAX9295A |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V POC |
| Current | <200mA@12VDC |
| Connector | Amphenol Fakra(Z Code) |
| Operating temp.
range |
-40~+85℃ |
| Dimensions | W:25mm,L:25mm,H:18.6mm |
| Weight | <50g |
| Product Number | MCI002 |
