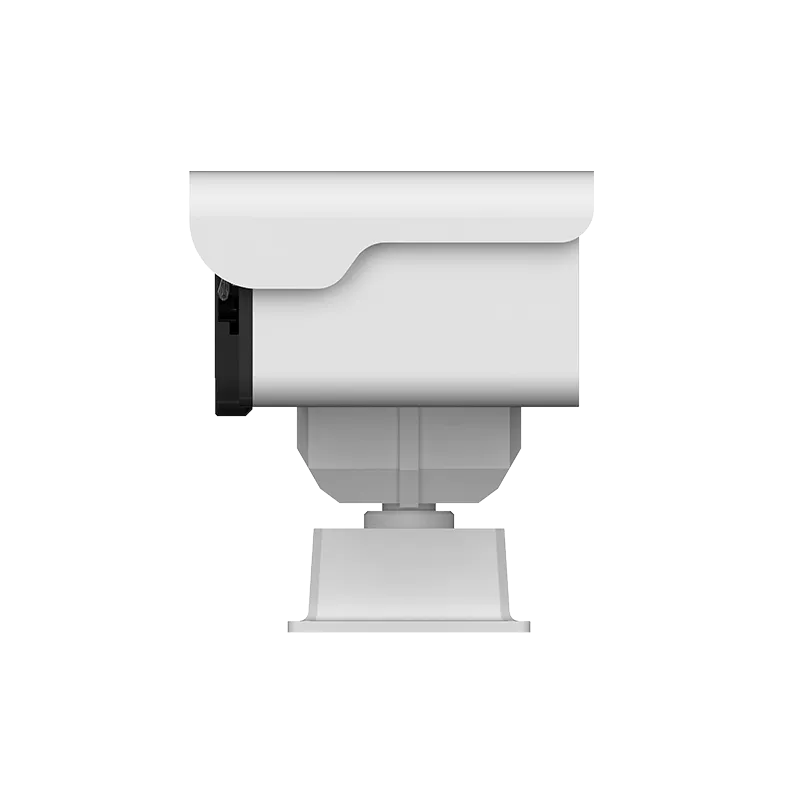

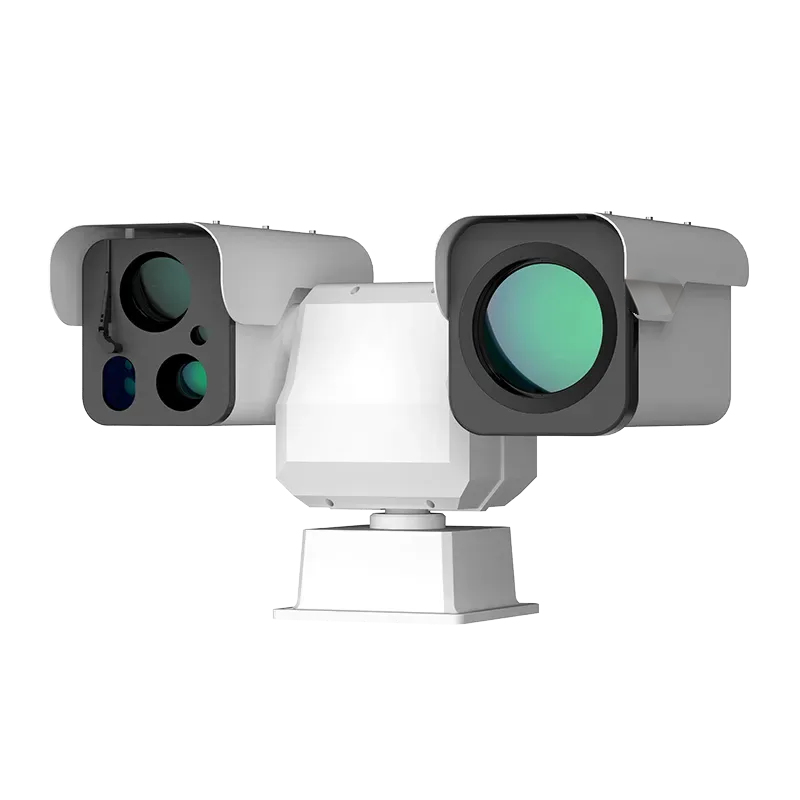

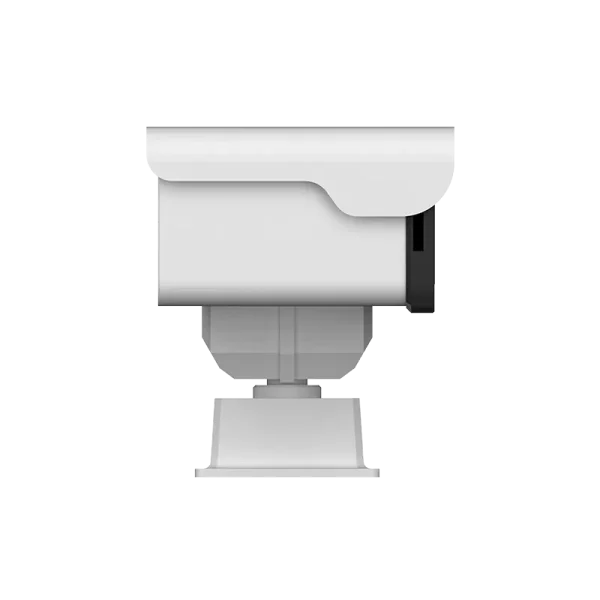

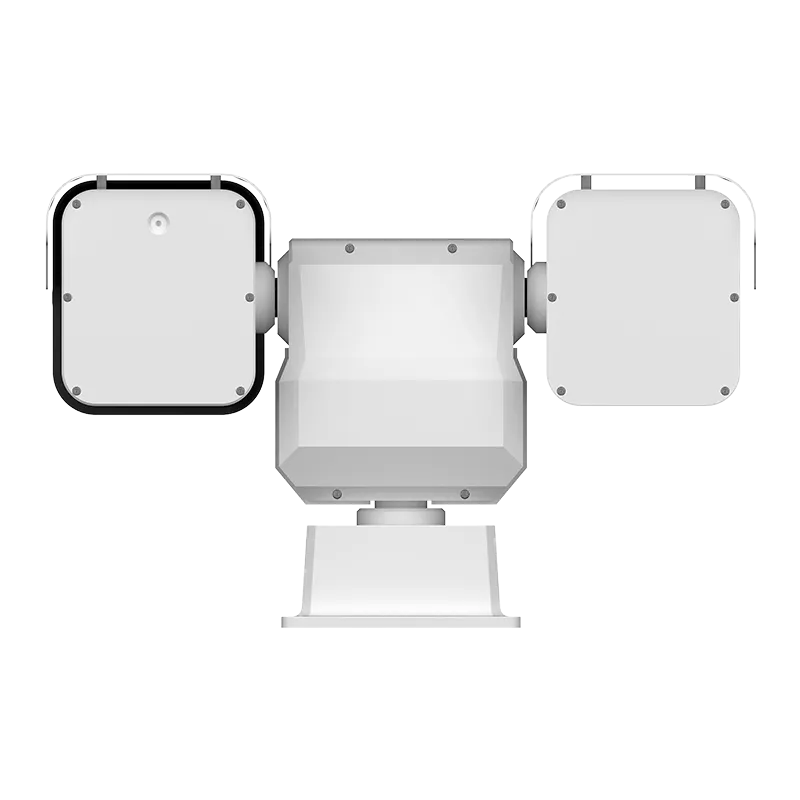

MP3 Series Multi-Spectrum PTZ Camera Intelligent Smoke Fire Detection
The MP3 Series is a professional multi-spectrum network PTZ camera. It is engineered specifically for forest fire prevention and perimeter security. This system integrates a dual thermal-visible imaging system for users. It features a thermal lens up to 150mm for long-range detection. Optional laser rangefinder and laser illumination functions are available for integration. An NPU-driven AI-ISP engine powers exceptional ultra-low-light imaging performance. It enables intelligent recognition of humans, vehicles, and vessels for monitoring. The camera also identifies smoke and fire points with high accuracy. Multiple patrol modes provide reliable 24/7 uninterrupted safety monitoring at sites. This camera supports TPM security technology for advanced data protection. It complies with FIPS 140-3 Level 3 standards for secure operations.
Application :
Urban High‑Altitude Observation
Forest Fire Prevention
Critical Infrastructure Protection
Perimeter Surveillance
Advantages
High‑Performance Infrared Detector
Adopts an advanced 12μm uncooled infrared detector with optimized thermal imaging algorithms to ensure sharp, clear long‑distance visualization.
Multi‑Spectrum Observation System
Integrates long‑range thermal and visible light imaging, supported by up to 1.5km laser illumination and 6km laser rangefinder for enhanced situational awareness.
Long‑Range Optical Detection
Features a 30–150mm continuous zoom thermal lens and a 10–550mm continuous zoom visible lens, enabling accurate long‑range detection and identification.
Intelligent Smoke & Fire Detection
Built‑in high‑precision smoke and fire detection algorithm delivers efficient, reliable monitoring with greatly reduced false alarms.
AI‑Powered Video Analytics
Supports AI‑based recognition of humans, vehicles and vessels, combined with tripwire and intrusion detection for intelligent perimeter protection.
Flexible Platform Integration
Fully supports ONVIF, provides SDK & demo for secondary development, and is compatible with professional NVR and VMS management software.
Resources
Technical Data
|
Thermal Module |
|||||||||||||||||||
|
|
||||||||||||||||||
|
Optical Module |
|||||||||||||||||||
|
|
||||||||||||||||||
|
IR Illuminator (Optional) |
|||||||||||||||||||
|
|
||||||||||||||||||
|
LRF (Optional) |
|||||||||||||||||||
|
|
||||||||||||||||||
|
PTZ |
|||||||||||||||||||
|
|
||||||||||||||||||
|
Smart Function |
|||||||||||||||||||
|
|
||||||||||||||||||
|
System Interface |
|||||||||||||||||||
|
|
||||||||||||||||||
|
General |
|||||||||||||||||||
|
|||||||||||||||||||
