MP12A Dual-Spectrum PTZ Camera Long‑Range High‑Definition Camera

Request Price PDF Download

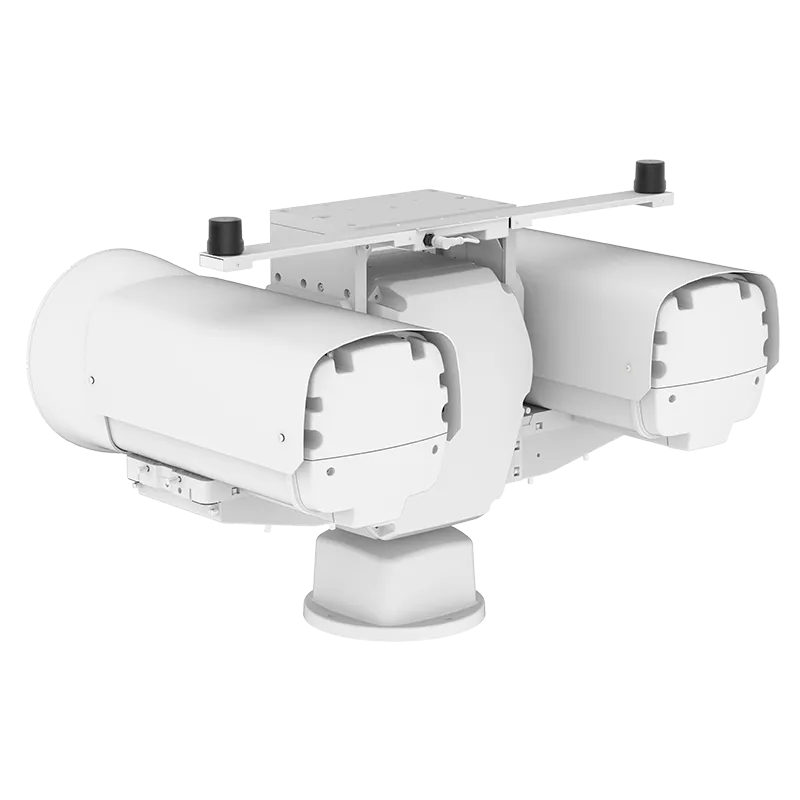

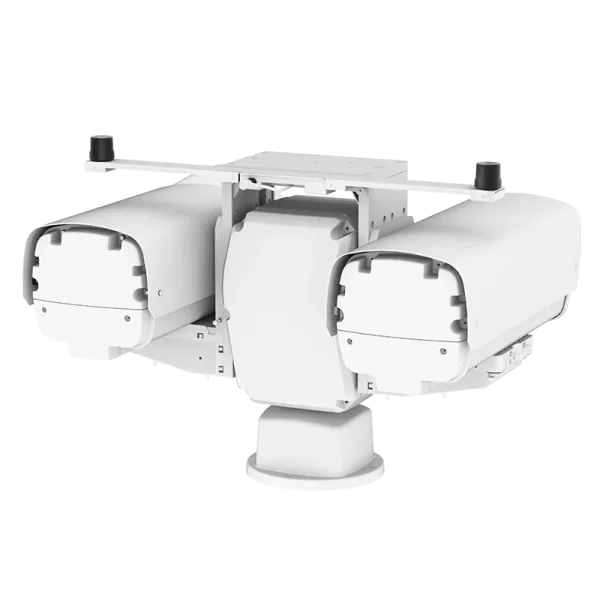

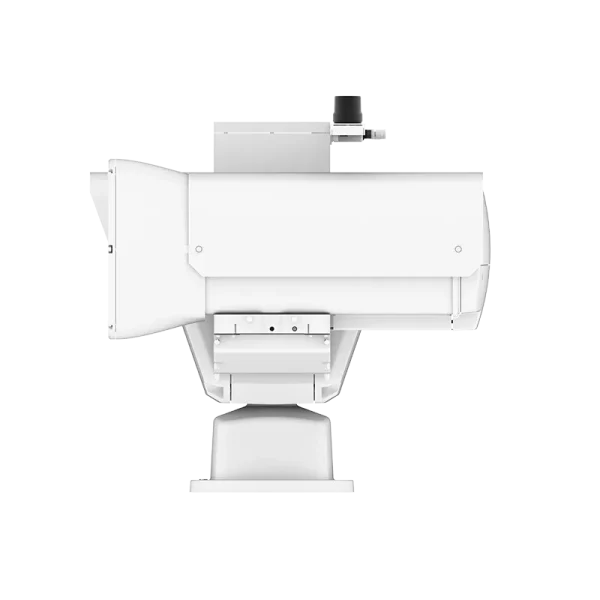

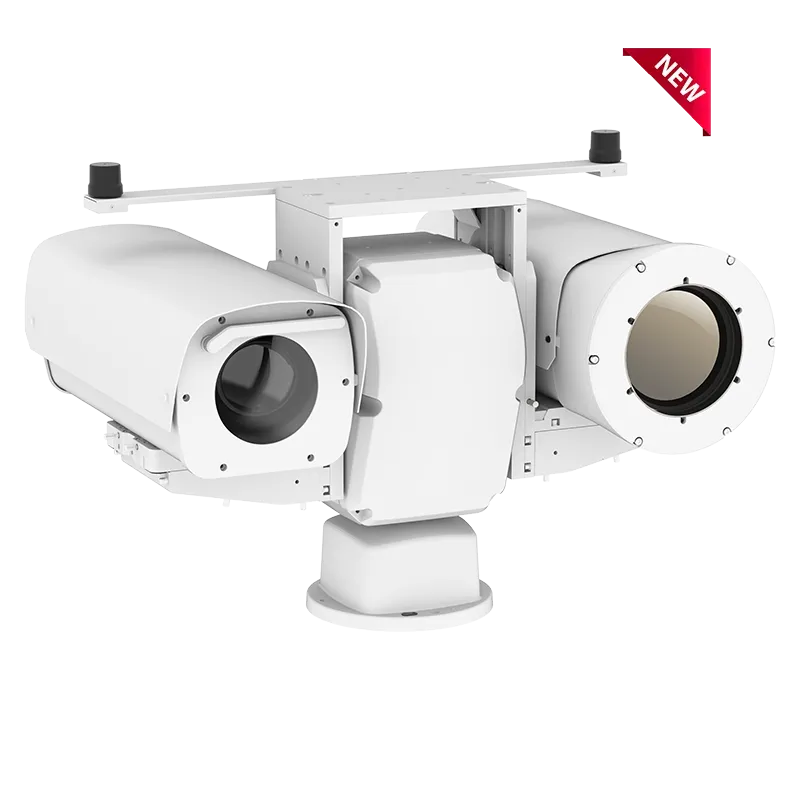

The MP12A Dual‑Spectrum PTZ Camera is a professional mid‑to‑long range monitoring system that combines infrared thermal imaging, HD visible light imaging, and intelligent PTZ control in one integrated unit.
It features intelligent functions such as fire point detection, tripwire and regional intrusion detection, significantly improving target identification accuracy at night and under harsh weather conditions.
Ideal for large‑scale and long‑distance monitoring scenarios including forest fire prevention, airports, and urban high‑altitude observation.
The camera supports TPM technology and complies with FIPS 140‑3 Level 3 security standards.

4 / 1

Application :

Coastline & Harbor Security
Forest Fire Prevention
Critical Area Perimeter Protection
Urban High‑Altitude Monitoring

Advantages

Resources

Technical Data

Advantages

High‑Performance Infrared Detector

Equipped with an advanced uncooled infrared detector or high‑performance MWIR cooled detector, paired with professional thermal imaging algorithms to deliver sharp and clear long‑distance imaging.

High‑Definition Dual‑Spectrum Imaging

Supports thermal imaging up to 2MP (1920×1080) and visible light imaging up to 4MP (2688×1520), providing high‑detail dual‑channel monitoring.

Long‑Range Detection & Zoom

Features continuous zoom thermal lenses (25–225mm and 35–350mm) to satisfy various long‑distance detection and observation requirements.

Intelligent Video Analytics

Built‑in AI intelligent analysis enables multi‑target recognition (human, vehicle, vessel, UAV, fire point) and supports intrusion, tripwire, and regional entry/exit detection.

Centimeter‑Level Satellite Positioning

Supports centimeter‑accurate latitude, longitude and elevation positioning with RTK capability; azimuth accuracy up to 0.3°.

Flexible Platform Integration

Fully supports ONVIF, provides SDK & demo for secondary development, and is compatible with dedicated NVR and VMS management software.

Resources

[download]

Technical Data

Thermal Module

Detector Type	Uncooled VOx infrared detector
Spectral Range	8~14μm
NETD	≤40mK(@25°C, F#1.0, 25 Hz)
Resolution	640×512
Pixel Pitch	12μm
Focal Length	25~225mm/35~350mm

Optical Module

Sensor	1/1.8-inch 4 megapixel CMOS image sensor
Resolution	2688×1520
Focal Length	15~775mm/20~1200mm

GNSS

Satellite Positioning

Satellite location module

PTZ

Pan	360° continuous，0.01°~120°/s
Tilt	-90°~+90°，0.01°~60°/s
Scan mode	Preset point/Patrol inspection group/Patrol inspection scan/Linear scan/Pattern scan

Smart Function

Fire Detection	Support
Alarm Linkage	Video taking/Image capture/Email/Linked PTZ/Alarm output
Fire Point Detection	Support
Intelligent Alarm	Abnormality detection and linkage alarm for network cable disconnection, IP address conﬂict, full memory, memory error, and illegal access
Intelligent Detection	Tripwire detection, regional intrusion, and other intelligent video analysis functions
Intelligent Recognition	Recognition and tracking of people, vehicles, ships, UAVs

System Interface

Power	DC 48V±15%
Audio	1-channel audio input, 1-channel audio output
Alarm	7-channel input, 2-channel output
Storage	Micro SD card (up to 1 TB)
Serial Port	1-channel RS485 interface
Network	One RJ45 10 M/100 M adaptive Ethernet port

General

Work Environment	-40℃~+70℃；<90%RH
Protection	IP66, TVS 6000V, lightning protection, surge protection, and spike protection
Power Consumption	Max.270W
Dimenstion(mm)	805.6×661.5×585.3mm(W×H×L)
Weight	80kg
Product Number	MCI021
