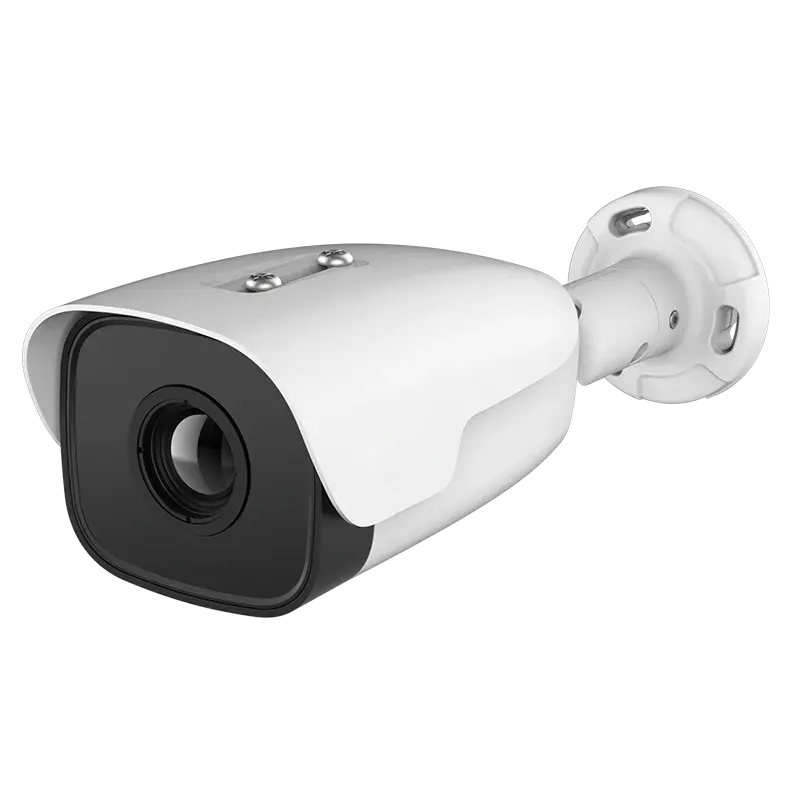

MK400Y Series Dual-Spectrum Bullet Camera Intelligent Analytics Thermal Infrared Camera

Request Price PDF Download

The MK400Y Series is a professional dual‑spectrum monitoring camera designed for reliable safety protection. It integrates a high‑sensitivity 12μm thermal detector with multiple lens configurations and a 5MP visible light sensor to deliver clear imaging day and night.
The camera features built‑in intelligent analytics including tripwire and intrusion detection, along with precision temperature analysis and active fire detection capabilities.
It is ideal for perimeter security and fire prevention applications in residential communities, commercial buildings and public facilities.

4 / 1

Application :

Charging Pile Safety Monitoring
Perimeter Protection
Power Equipment Monitoring
Warehouse Security & Safety

Advantages

Resources

Technical Data

Advantages

High‑Performance 12μm Thermal Sensor

The camera adopts an advanced 12μm uncooled infrared detector, paired with optimized thermal imaging algorithms to ensure sharp and detailed long‑distance observation.

Dual‑Spectrum All‑Weather Monitoring

Combines thermal imaging and visible light monitoring to provide stable, 24/7 security coverage in all lighting and weather conditions.

Precision Temperature Monitoring

Offers a wide temperature detection range from -20°C to 550°C, with high measurement accuracy up to ±2°C or 2% of reading.

Smart Video Analytics

Supports intelligent perimeter protection functions including tripwire and intrusion detection, plus automatic fire point identification for early hazard warnings.

Intelligent Alarm Linkage

Equipped with flexible alarm linkage functions to improve response efficiency and enhance overall site safety management.

Seamless System Compatibility

Fully supports the ONVIF standard, includes complete SDK and demo tools for custom integration, and works with professional NVR and VMS management platforms.

Resources

[download]

Technical Data

Thermal Module

Detector Type	VOx, uncooled FPA detectors
Spectral Range	8~14μm
NETD	≤40mK(@25°C, F#1.0, 25 Hz)
Resolution	384×288/ 640*512 to choose
Pixel Pitch	12μm
Focal Length	9.1mm/13mm/19mm/25mm;

Optical Module

Sensor	5MP 1/2.8″ Progressive Scan CMOS
Resolution	2560×1920
Focal Length	4mm/6mm/6mm/12mm/12mm
IR distance	40m

Image Function

Bi-Spectrum Image Fusion

Support

Smart Function

Fire Detection	Support
VCA	Support Line Crossing & Intrusion detection
2-Way Audio	Support
Linkage Action	Video/ Snapshot/Email/Alarm output/sound and light alarm

System Interface

Power	DC 12V±25%/POE(802.3at)
Network	1 RJ45 10M / 100M self-adaptive Ethernet port
Audio	1 in/1 out
Alarm	2 in/1 out
Storage	Micro SD memory（maximum 256G）
Reset	Support
Serial Port	1 channel RS485, can support Pelco protocol

General

Work Environment	-40℃~+70℃；<95%RH
Protection	IP66
Certification	CE,ROHS,CE-EMC Test Report, FIPS 140-3 Level 3
Power Consumption	≤8W
Dimenstion(mm)	319.5×121.5×103.6
Weight	≤1.8kg

Temperature Range	-20℃~+550℃
Temperature Accuracy	±2℃ or ±2%
Temperature Measurement	Support 4 temperature measure ment rules(fullframe, point, line, area)
Product Number	MCI014
