MCT490 Ultra-high Temperature Thermal Camera Non-contact Imaging Camera

Request Price PDF Download

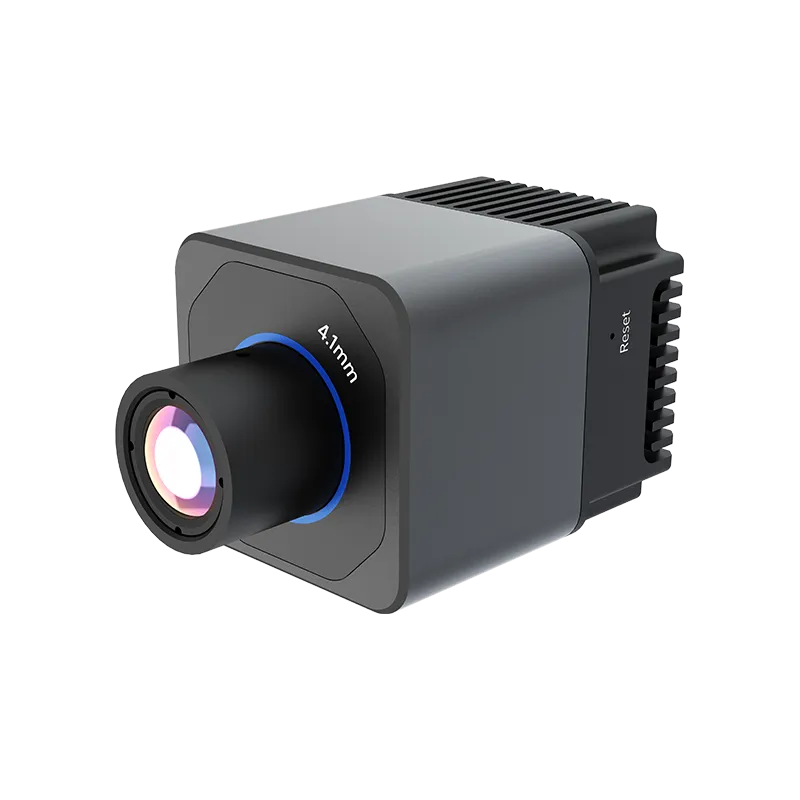

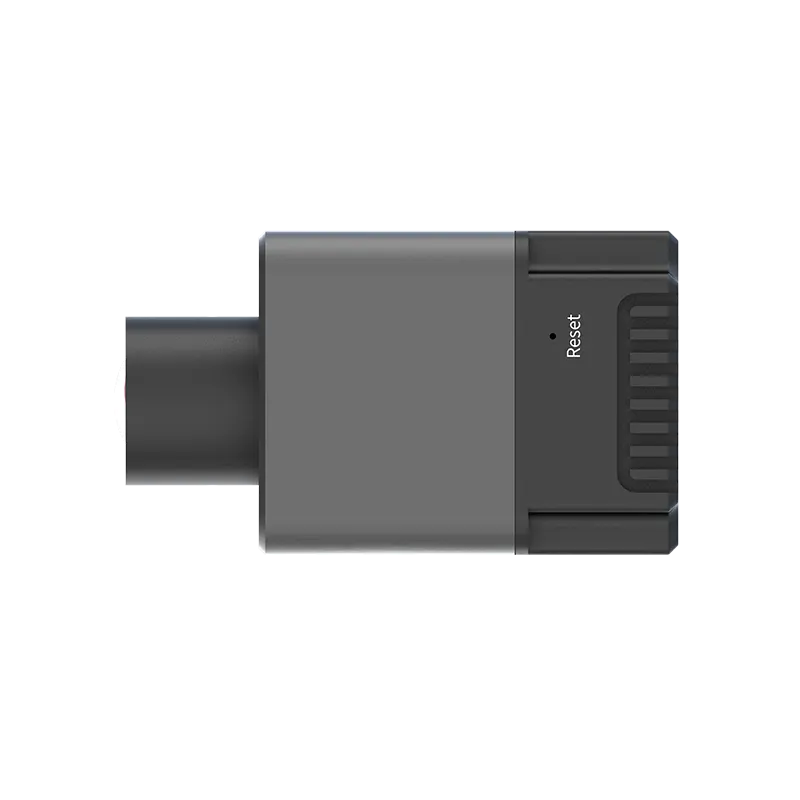

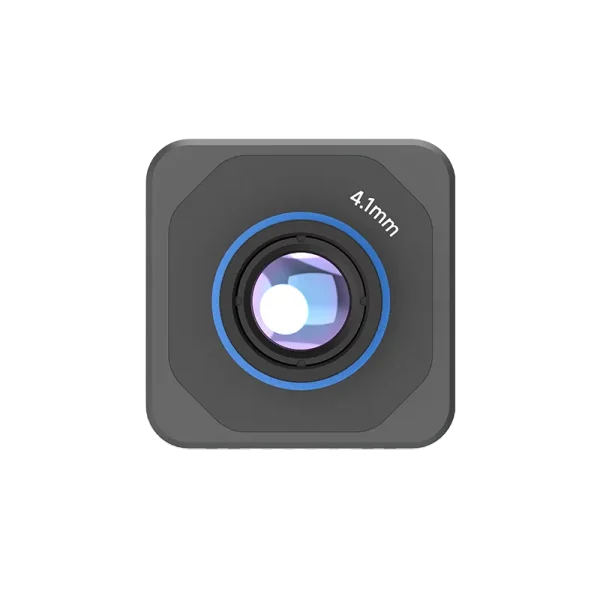

The MCT490 Online Ultra-high Temperature Thermal Camera is a non-contact infrared thermal imaging camera specially designed for ultra-high temperature measurement applications.

Equipped with an uncooled infrared FPA detector, it delivers 640×512 high resolution and an ultra-wide temperature measurement range of 0~2000°C.
It features a compact, lightweight design with optional air-cooled or water-cooled housings, supporting a maximum ambient operating temperature of 220°C.

Three lens options are available to provide clear, accurate infrared imaging and precise temperature measurement.

Adopting open network protocols, it enables easy system integration and secondary development, greatly improving overall system flexibility.

4 / 1

Application :

Metallurgy
Glass Manufacturing
Foundry & Casting
Coal Chemical Industry

Advantages

Resources

Technical Data

Advantages

High-Resolution Infrared Imaging

New-generation 12μm pixel pitch uncooled infrared FPA detector with 640×512 high resolution.
Integrated with advanced infrared imaging algorithms for sharper, clearer, high-detail thermal images.

Ultra-high Temperature Measurement & Stable Output

Ultra-wide measurement range: 0~2000°C, professionally designed for high-temperature industrial scenes.
Synchronized 25 Hz image and temperature data output for consistent, stable high-temperature monitoring.

Refined Industrial Design & Easy Deployment

Compact and lightweight structure for flexible installation and integration.
Optional air-cooled / water-cooled housings to adapt to harsh industrial environments.
Three interchangeable lenses for versatile application scenarios.
Open network protocols for smooth customer integration and secondary development.

Resources

[download]

Technical Data

Thermal Imaging Parameters

Detector	Uncooled VOx detector
Infrared Resolution	640×512
Pixel pitch	12μm
Spectral Band	7.5μm~14μm
Thermal Sensitivity (NETD)	≤40mK(@25°C, F#1.0, 25 Hz)
Focal Length	4.1mm/6.9mm/19mm
F Value	3.0/3.5/3.5
Focus Mode	Fixed focus, athermalized
FOV	100°×82°/62.9°×50.4°/22.9°×18.4°
Spatial Resolution	2.927mrad/1.74mrad/0.632mrad

Temperature Measurement Function

Measurement Range	0°C~800°C, 600°C~2000°C
Measurement Accuracy	±2°C or ±2% of readings, whichever is greater
Temperature Measurement Correction	Reflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distance
Measurement Tool	Temperature measurement of 12 points, 12 lines, and 12 areas, supporting isotherm settings and temperature alarm
Image Processing	Temperature width stretch, non-uniformity correction, thermal image capture, digital zoom (1-8)

Image and Video

Frame Rate	25 Hz
Palettes	20 color palettes including black-hot, white-hot, iron red, rainbow, etc.
Video Standards	H.264, H.265

System Interface

Communication interface	RJ45, 10M/100M adaptive Ethermet port; 1-channel RS485, supporting Pelco-D protocol expansion
Audio Interface	1-channel audio input, 1-channel audio output
Alarm Interface	1-channel alarm input, 1-channel alarm output
Video Interface	1-channel analog video
Audio Standards	G.711a/G.711U/AAC/PCM
Storage Interface	SD card
Network Protocol	IPv4, HTTP, HTTPS, SMTP, FTP, UPnP, DNS, DDNS, NTP, RTCP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP
Interface Protocol	Modbus TCP, ONVIF, GB28181, MQTT

Device Specifications

Operating Temperature	-20℃~+60℃
Power supply mode	12V DC or PoE power supply
Typical Power Consumption	<2.5W
Dimensions	<50x50x90mm
Weight	About 200g
Product Number	MCI050
